Climate (If equipped)
Press [
] > [Climate]. The screens shown in this manual may differ from the actual screens of the product.
Type A
|
|
1
Moves to the previous screen.
2
Moves to the [Home] screen.
3
Displays the [Climate] menu.
4 Temperature
It displays the set temperature.
5 Current time
Moves to the [Date/Time settings] screen.
6 Climate settings menu
Displays the climate settings menu.
7 A/C
When the A/C is active, the air conditioner is operated for vehicle cooling.
8 Blower direction
Displays the set blower direction.
9 Blower level
Displays the set blower level.
10 AUTO (If equipped)
When the AUTO is active, the blower level and cooling/heating are automatically operated according to the set temperature.

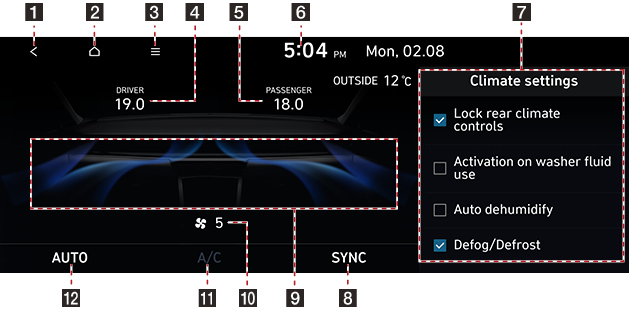

Type B
|
|
1
Moves to the previous screen.
2
Moves to the [Home] screen.
3
Displays the [Climate] menu.
4 Temperature (Driver)
It displays the set temperature.
5 Temperature (Passenger)
It displays the set temperature.
6 Current time
Moves to the [Date/Time settings] screen.
7 Climate settings menu
Displays the climate settings menu.
8 SYNC
When the SYNC is active, the front passenger seat and driver seat are synchronized.
9 Blower direction
Displays the set blower direction.
10 Blower level (Passenger)
Displays the set blower level.
11 A/C
When the A/C is active, the air conditioner is operated for vehicle cooling.
12 AUTO (If equipped)
When the AUTO is active, the blower level and cooling/heating are automatically operated according to the set temperature.
Rear climate control (If equipped)
Press [
] > [Rear climate]. The screens shown in this manual may differ from the actual screens of the product.

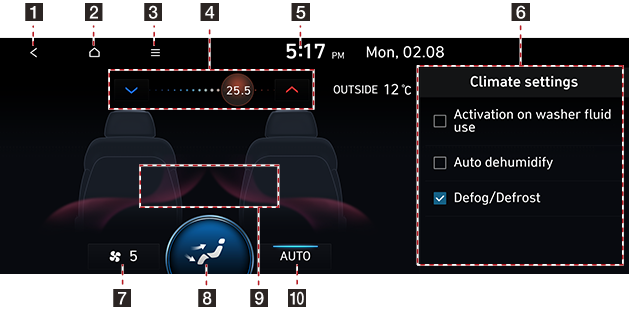

Type A
|
|
1
Moves to the previous screen.
2
Moves to the [Home] screen.
3
Displays the [Rear climate] menu.
4 Rear seat temperature control
Adjusts the temperature of the rear seat.
5 Current time
Moves to the [Date/Time settings] screen.
6 Climate settings menu
Displays the climate settings menu.
7 Blower level
Displays the blower level of the rear seat and adjusts it.
8 Blower direction
Displays the blower direction of the rear seat and adjusts it.
9 Blower direction and level
Displays the set rear seat blower direction and level.
10 AUTO (If equipped)
When the AUTO is active, the blower level and cooling/heating are automatically operated according to the set temperature.

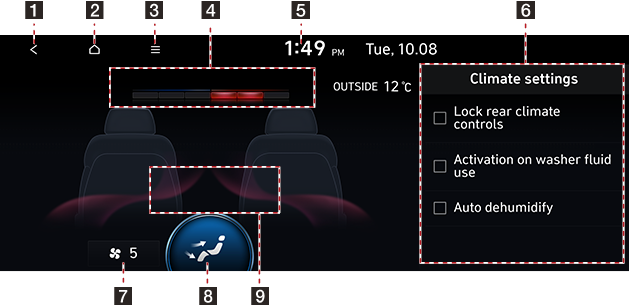

Type B
|
|
1
Moves to the previous screen.
2
Moves to the [Home] screen.
3
Displays the [Rear climate] menu.
4 Rear seat temperature control
Adjusts the temperature of the rear seat.
5 Current time
Moves to the [Date/Time settings] screen.
6 Climate settings menu
Displays the climate settings menu.
7 Blower level
Displays the blower level of the rear seat and adjusts it.
8 Blower direction
Displays the blower direction of the rear seat and adjusts it.
9 Blower direction and level
Displays the set rear seat blower direction and level.
