Using Rear Camera (If equipped)
About Rear Camera
- Rear camera is a feature for the customers who select an option.
- The rear camera provides a view of the rear of the vehicle when reversing.
- When the shift lever is placed in R with the vehicle’s ignition turned on, the rear camera will operate.
- If you change the shift lever location from R to the other position than P, the rear camera stays turned on. But the rear screen will remain until you enter the hard key or drive at a speed of 10 km/h or more. (Only if the option to keep rear camera view is supported.)

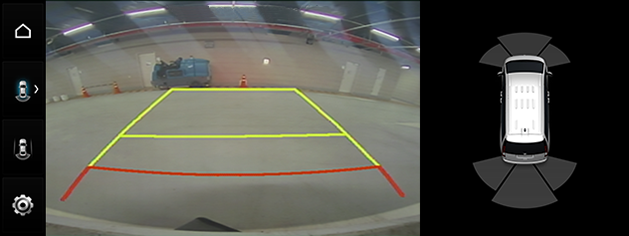

- On the rear camera screen, the guideline for parking is displayed, moving depending on the direction of the steering wheel.
Turning on the rear camera
When the vehicle is started, put the transmission lever in the R position.
|
|
|
,Note |
|
The rear camera has a wide-angle lens to provide a wide view, so the distance shown on the screen differs from the actual distance. For your safety, always check the rear, left and right views when reversing. |
About DRV (Driving Rear View)
This function allows you to view the rear of the vehicle while driving through the rear camera mounted on the vehicle.
Operating DRV
After turning on the engine, putting the lever of the transmission in the N or D position and press [Camera switch] to start DRV.
|
,Note |
|
If you drive at about 10 km/h or more during DRV operation, DRV is turned off. At this state, even if you drive at less than about 10 km/h, DRV is remained at OFF state. |
About PDW (Parking Distance Warning) (If equipped)
This function displays you a warning when an object is detected around the vehicle.
|
|
To set brightness or contrast, press [b] on the screen. It goes to the camera settings menu. You can set the brightness or contrast.
About Trailer View Mode (If equipped)
It shows you the view from each other camera.
|
|
To switch the view to the other cameras, touch the camera view button
and press
to switch to the trailer mode view or press
to switch to the parking assist wide view.
