Before using Connected Services (If equipped)

What is Connected Services?

Connected Services allow users to receive additional information in their car navigation system through the mobile phone network.

Traffic

Delivers the most accurate traffic information every two minutes. If you set the destination, you can have recommendations to recalculate the route according to the traffic condition.

Live charging stations / Live filling stations

Delivers charging/filling stations search results based on real time location information.

Live parking

Delivers parking information, and delivers parking information of the major European cities on the map.

Live POI (Point of Interest)

Delivers POI search results based on real time location information.

,Note

Some functions are provided only in the Wi-fi connection type, and Server Search is provided in Bluelink.

Connecting phone for using Connected Services

1. Activate a Wi-Fi Hotspot on your mobile phone, and search for Wi-Fi networks. (For more details, refer to your mobile phone's user manual.)

,Note

By creating a Wi-Fi Hotspot, you may incur additional data charges depending on your data plan, particularly when roaming. The battery of the mobile phone may drain quickly so consider charging the phone while using Connected Services.

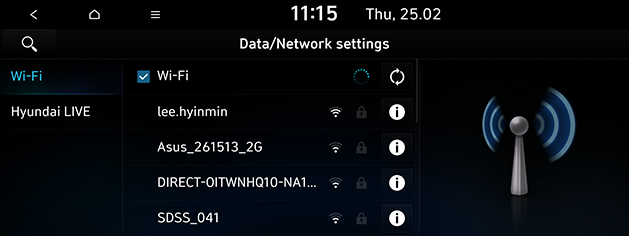

2. Press [SETUP] > [Data/Network].
3. Press [Wi-Fi]. Some functions and images may differ from the actual product, according to the model, option and country.

4. Press [Wi-Fi]. Select the desired Network. (If you want to connect the Wi-Fi Network manually, press [Add Wi-Fi network]. Especially, you can connect to a hidden Wi-Fi Network.)

,Note

When you connect the Network for the first time, the information sharing notice screen is displayed. Read carefully and then press [Activate]. Some functions are provided only in Wi-fi connection type, and Server Search is provided in Bluelink.

Traffic

The current traffic/road event information is basically displayed on the traffic information list. This feature may not be reflected depending on the condition.

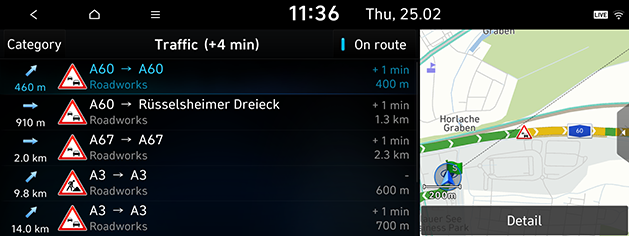

1. Press [] > [Hyundai LIVE] > [Traffic].

• It is displayed when there is traffic information along the route or near the current position.
• The total delay time will be displayed on the title. This can be different from the sum of each delay time due to rounding-off.

2. Select the desired items.

• [Recalculate]: Recalculates the route by reflecting traffic information.

Live POI (Point of Interest) (If equipped)

You can set a POI as a destination using various search methods.

Searching for POI by [Near current position] or [Near destination]

1. Press [] > [Hyundai LIVE] > [Live POI].

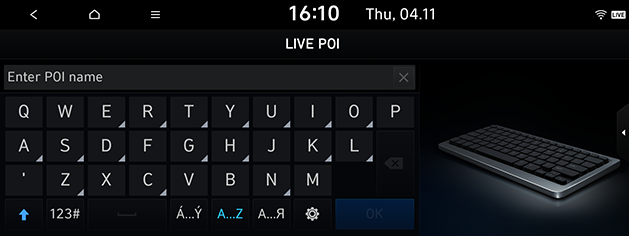

2. Enter the desired POI (Point of Interest) name and press [OK].
3. Press [Near current position] or [Near destination].

• [Near current position]: Searches POI near current vehicle position.
• [Near destination]: Searches POI near the selected destination.

4. Select the desired destination.
5. Follow steps 4-5 of the “Search” part.

Searching for POI by [Near scroll mark]

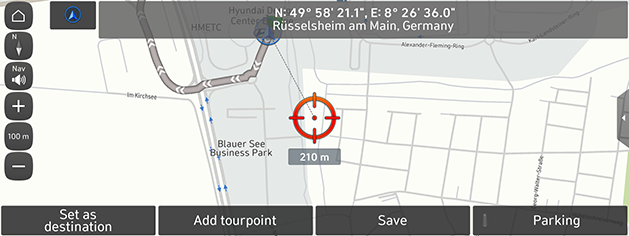

1. Perform a long press on the desired map area. The selected point will be centred on the screen and then a scroll mark will be displayed.

2. Press [] > [Hyundai LIVE] > [Live POI].
3. Enter the desired POI (Point of Interest) name and press [OK].
4. Press [Near scroll mark]: Searches POI near scroll mark position.
5. Select the desired destination.
6. Follow steps 4-5 of the “Search” part.

Searching for POI by [Near city centre]

1. Press [] > [Hyundai LIVE] > [Live POI].

2. Enter the desired POI (Point of Interest) name and press [OK].
3. Press [Near city centre].

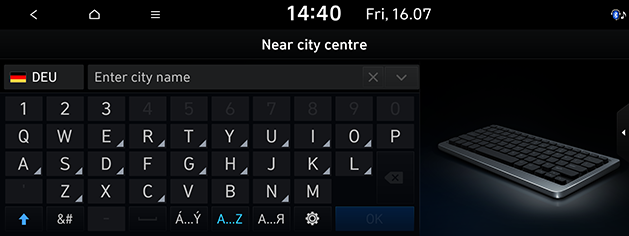

4. Enter the desired city name and press [OK].
5. Select the desired destination.
6. Follow steps 4-5 of the “Search” part.

Live parking

You can set parking as a destination using different search methods. You can set the advanced search option setting by pressing [Filter].

This provides parking information and delivers parking information of the major European cities on the map.

Searching for parking by [Near current position] or [Near destination]

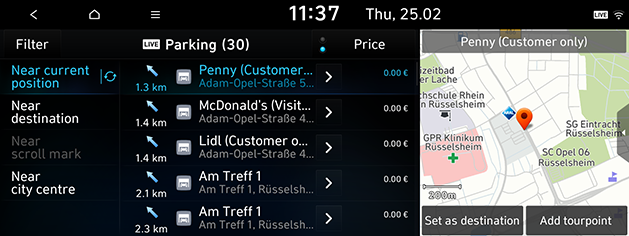

1. Press [] > [Hyundai LIVE] > [Live parking].

2. Press [Near current position] or [Near destination].

• [Near current position]: Searches parking near current vehicle position.
• [Near destination]: Searches parking near the selected destination.
• Press [Distance] or [Price] to arrange the list in distance or price order.

3. Select the desired destination.
4. Follow steps 4-5 of the “Search” part.

Searching for parking by [Near scroll mark]

1. Perform a long press on the desired map area. The selected point will be centred on the screen and then a scroll mark will be displayed.

2. Press [] > [Hyundai LIVE] > [Live parking] > [Near scroll mark].
3. Select the desired destination.
4. Follow steps 4-5 of the “Search” part.

Searching for parking by [Near city centre]

1. Press [] > [Hyundai LIVE] > [Live parking] > [Near city centre].

2. Enter the desired city name and press [OK].
3. Select the desired destination.
4. Follow steps 4-5 of the “Search” part.

Live charging stations (Live filling stations)

You can set a charging station (filling station) as a destination using different search methods.

Searching for charging stations (filling stations) by [Near current position] or [Near destination]

1. Press [] > [Hyundai LIVE] > [Live charging stations] or [Live filling stations].
2. Press [Near current position] or [Near destination].

• [Near current position]: Searches charging stations (filling stations) near current vehicle position.
• [Near destination]: Searches charging stations (filling stations) near selected destination.

3. Select the desired destination.
4. Follow steps 4-5 of the “Search” part.

Searching for charging stations (filling stations) by [Near scroll mark]

1. Perform a long press on the desired map area. The selected point will be centred on the screen and then a scroll mark will be displayed.

2. Press [] > [Hyundai LIVE] > [Live charging stations] or [Live filling stations] > [Near scroll mark].
3. Select the desired destination.
4. Follow steps 4-5 of the “Search” part.

Searching for charging stations (filling stations) by [Near city centre]

1. Press [] > [Hyundai LIVE] > [Live charging stations] or [Live filling stations] > [Near city centre].

2. Enter the desired city name and press [OK].
3. Select the desired destination.
4. Follow steps 4-5 of the “Search” part.

Connected Services availability by Country

“O” : Available, “X” : Not Available, “△” : Optional

Country	Code	CSO Traffic	CSO Weather	CSO Camera	CSO Server Search
Albania	ALB	X	O	X	△
Andorra	AND	O	O	O	O
Austria	AUT	O	O	O	O
Belgium	BEL	O	O	O	O
Bulgaria	BGR	X	O	O	O
Bosnia and Herzegovina	BIH	X	O	△	△
Belarus	BLR	X	O	△	△
Switzerland	CHE	O	O	X	O
Cyprus	CYP	X	O	△	O
Czech	CZE	O	O	O	O
Germany	DEU	O	O	O	O
Denmark	DNK	O	O	O	O
Spain	ESP	O	O	O	O
Estonia	EST	O	O	O	O
Finland	FIN	O	O	O	O
France	FRA	O	O	O	O
UK	GBR	O	O	O	O
Gibraltar	GIB	O	O	△	O
Greece	GRC	O	O	O	△
Croatia	HRV	O	O	O	O
Hungary	HUN	O	O	O	O
Ireland	IRL	O	O	△	O
Iceland	ISL	O	O	△	O
Italy	ITA	O	O	O	O
Liechtenstein	LIE	O	O	X	O
Lithuania	LTU	O	O	O	O
Luxemburg	LUX	O	O	O	O
Latvia	LVA	O	O	O	O
Monaco	MCO	O	O	O	O
Moldova	MDA	X	O	X	△
Macedonia	MKD	X	O	X	△
Malta	MLT	X	O	△	O
Montenegro	MNE	X	O	X	O
Netherlands	NLD	O	O	O	O
Norway	NOR	O	O	O	O
Poland	POL	O	O	O	O
Portugal	PRT	O	O	O	O
Romania	ROU	O	O	O	O
Russia	RUS	O	O	O	O
San marino	SMR	O	O	△	O
Serbia	SRB	X	O	O	O
Slovakia	SVK	O	O	O	O
Slovenia	SVN	O	O	O	O
Sweden	SWE	O	O	O	O
Turkey	TUR	O	O	X	O
Ukraine	UKR	O	O	O	O
Vatican City	VAT	X	O	O	O

Country	Code	CSO Parking (Off street)	CSO Parking (On street)	CSO Fuel	CSO EV	CSO FCEV
Albania	ALB	O	△	X	△	X
Andorra	AND	O	△	O	O	X
Austria	AUT	O	△	O	O	O
Belgium	BEL	O	O	O	O	O
Bulgaria	BGR	O	△	O	O	X
Bosnia and Herzegovina	BIH	O	△	△	△	X
Belarus	BLR	△	△	X	X	X
Switzerland	CHE	O	O	O	O	O
Cyprus	CYP	O	X	O	X	X
Czech	CZE	O	O	O	O	△
Germany	DEU	O	O	O	O	O
Denmark	DNK	O	O	O	O	O
Spain	ESP	O	O	O	O	O
Estonia	EST	O	△	△	O	△
Finland	FIN	O	O	O	O	△
France	FRA	O	O	O	O	O
UK	GBR	O	O	O	O	O
Gibraltar	GIB	O	X	X	X	X
Greece	GRC	O	△	O	O	X
Croatia	HRV	O	△	O	O	X
Hungary	HUN	O	△	O	O	X
Ireland	IRL	O	O	O	O	X
Iceland	ISL	O	△	X	O	△
Italy	ITA	O	O	O	O	O
Liechtenstein	LIE	O	X	O	△	X
Lithuania	LTU	O	△	△	O	X
Luxemburg	LUX	O	O	O	O	X
Latvia	LVA	O	△	△	O	△
Monaco	MCO	O	X	O	△	X
Moldova	MDA	O	△	X	X	X
Macedonia	MKD	O	△	△	△	X
Malta	MLT	O	△	X	O	X
Montenegro	MNE	O	△	X	X	X
Netherlands	NLD	O	O	O	O	O
Norway	NOR	O	O	O	O	O
Poland	POL	O	O	O	O	X
Portugal	PRT	O	O	O	O	X
Romania	ROU	O	△	O	O	X
Russia	RUS	O	O	O	O	X
San marino	SMR	O	△	O	△	X
Serbia	SRB	O	△	△	O	X
Slovakia	SVK	O	△	O	O	X
Slovenia	SVN	O	△	O	O	X
Sweden	SWE	O	O	O	O	O
Turkey	TUR	O	△	O	O	X
Ukraine	UKR	O	△	△	△	X
Vatican City	VAT	X	X	X	X	X

,Note

The availability of Connected Services may be changed depending on the Connected Services Condition. The Connected Services data (Traffic/Camera Alerts/Weather/Live POI) may not be matched with the real condition. Connected Services are free of charge for the first 7 years of ownership. Afterward, licence fees will be required to continue using the services. The availability of Connected Services may change without prior notification for service improvement.
