Radio

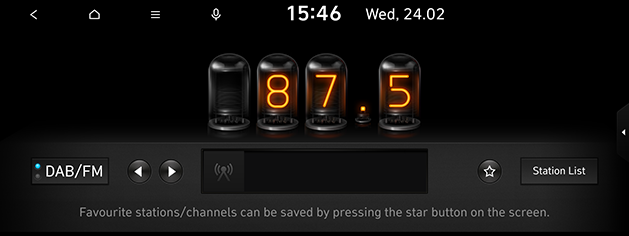

Listening to DAB (If equipped)/FM

  1. Press [RADIO] on the head unit.
  2. Press [AM] to change the band to FM radio if the radio band is set to AM.

The DAB (If equipped)/FM screen of the most recent listened station is displayed.


,Note

Each time the [RADIO] on the head unit is pressed, the mode is changed in the order DAB (If equipped)/FM > AM > DAB (If equipped)/FM.

Auto tuning

Press [A SEEK/TRACK D]or [S/W] on the head unit. Plays previous/next available station.

Manual tuning

  1. On the FM mode, press [icon_PDePE_MENU_191218.png] > [Manual tune FM].


  1. Drag the station bar to the left/right to find the frequency that you want or press [US4_icon_156-1_210225.png/US4_icon_156-2_210225.png].

Favourites tuning

Press [S/W] on the steering wheel remote control.

,Note
  • FM broadcasts are transmitted at high frequencies and do not bend following the earth’s surface. Because of this, FM broadcasts generally begin to fade at short distances from the station. Also, FM signals are easily affected by buildings, mountains or other obstructions. These can result in undesirable listening conditions and show wrong information (ex. RDS PS NAME, etc.), which might lead you to believe a problem exists with your radio. The following conditions are normal and do not indicate radio trouble.
  • When the signal is weak, FM noise is generated and DAB sound is muted.

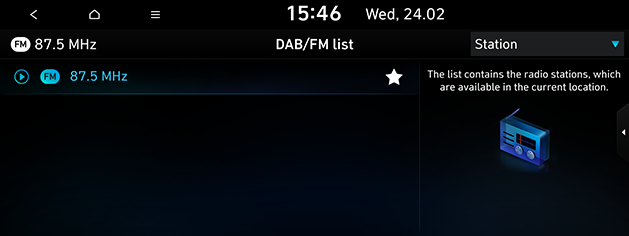

Opening the station list

You can see the station list with superior reception.

  1. Press [AM] to change the band to FM radio if the radio band is set to AM.
  2. Press [icon_PDePE_MENU_191218.png] > [Station List].


Saving DAB (If equipped)/FM Favourites

It saves the listening station to the desired favourites list.

  1. Press [AM] to change the band to FM radio if the radio band is set to AM.
  2. Select the frequency to save.
  3. Press [PD_favourites_star_200207.png].


SLS (Slide Show) - DAB only

You can view the slide show image information when image information is available from the broadcasting station in the DAB mode.

  1. Press [AM] to change the band to DAB/FM radio if the radio band is set to AM.
  2. Press [PDeN_ra_dab_btn_info_n_201106.png].

,Note

The [PDeN_ra_dab_btn_info_n_201106.png] icon may not be displayed if there is no information being transmitted by the broadcasting station.

Scan

This function scans all stations and plays only stations with good signal strength for 5 seconds each.

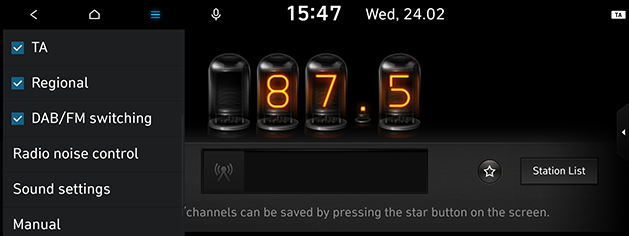

Press [icon_PDePE_MENU_191218.png] > [Scan DAB/FM]/[Scan FM].

TA

TA function allows the system to switch to Traffic Announcement (TA) from the current source. Traffic programmes and announcements can be automatically received by using TA features. Some functions and images may differ from the actual product, according to the model, option and country.

  1. Activate the TA feature by pressing [icon_PDePE_MENU_191218.png] > [TA].
  2. If TA is received from the broadcasting station, a pop-up message will appear and TA broadcasting is received.


Regional

When the receiving signals from the current station become weak, the station switches to another station. Some functions and images may differ from the actual product, according to the model, option and country.

  1. Press [AM] to change the band to FM radio if the radio band is set to AM.
  2. Press [icon_PDePE_MENU_191218.png] > [Regional].


  1. Press [Regional] again to cancel the function.

DAB/FM switching

This function allows the current DAB broadcasting to be disconnected, find the same FM broadcasting automatically. When listening to the FM radio, the system automatically switches to DAB when it finds the same DAB broadcasting. Some functions and images may differ from the actual product, according to the model, option and country.

  1. Press [AM] to change the band to FM radio if the radio band is set to AM.
  2. Press [icon_PDePE_MENU_191218.png] > [DAB/FM switching].


  1. Press [DAB/FM switching] again to cancel the function.

Radio noise control

This function allows tuning automatically the frequency to the FM broadcast you are listening without noise if the frequency is changed according to your location. Some functions and images may differ from the actual product, according to the model, option and country.

  1. Press [AM] to change the band to FM radio if the radio band is set to AM.
  2. Press [icon_PDePE_MENU_191218.png] > [Radio noise control].


  1. Select the desired item.

Sound settings

  1. Press [icon_PDePE_MENU_191218.png] > [Sound settings].
  2. For more details refer to the “Sound” part.
