Hybrid (HEV only)

Using the Hybrid menu (HEV only)


You can use various features for hybrid electric vehicles, such as viewing your vehicle′s fuel economy or energy information.

Starting the Hybrid menu (HEV only)

On the Home screen, press All Menus > Hybrid.
  1. Display the options list.
  1. Display Off (if equipped): Turn off the screen. Press the screen to turn it back on.
  2. User′s Manual on Web (QR Code): Access the web manual via the QR code. For safety reasons, you can access the QR code only when your vehicle is stationary.
  1. Return to the previous level.
  1. View fuel economy information. > See ″Viewing fuel economy information (HEV only).″
  1. View the real-time energy flow. > See ″Viewing the energy flow (HEV only).″
Note
Depending on the vehicle model or specifications, displayed screens and available functions may vary.

Viewing fuel economy information (HEV only)

  1. On the Home screen, press All Menus > Hybrid > Fuel Economy.
  1. View your vehicle′s fuel economy information.
  1. Display the options list.
  1. User′s Manual on Web (QR Code): Access the web manual via the QR code. For safety reasons, you can access the QR code only when your vehicle is stationary.
  1. Return to the previous level.
  1. View your fuel economy displayed in a graph as well as your accumulated average fuel economy according to your driving pattern.
  1. Reset the fuel efficiency graphs to the default values.
Note
  • The fuel efficiency graphs will be updated every two and a half minutes.
  • When the engine is stopped, the fuel efficiency graphs will be reset automatically. However, the average fuel efficiency value will not be reset.

Viewing the energy flow (HEV only)

You can view the energy flow between the engine, the electric motor, and the battery according to your vehicle′s driving status.
  1. On the Home screen, press All Menus > Hybrid > Energy Flow.
  1. View the current energy flow according to the vehicle′s driving status.
  1. View solar roof information (if equipped). > See ″Viewing solar roof information (HEV only) (if equipped).″
  1. Display the options list.
  1. User′s Manual on Web (QR Code): Access the web manual via the QR code. For safety reasons, you can access the QR code only when your vehicle is stationary.
  1. Return to the previous level.
  1. Your vehicle′s driving status
  1. The solar roof′s energy delivery and charging status (if equipped)
  1. The energy delivery direction between the engine, the electric motor, and the battery
Starting the vehicle
  • Starting the vehicle with the motor′s power
Driving

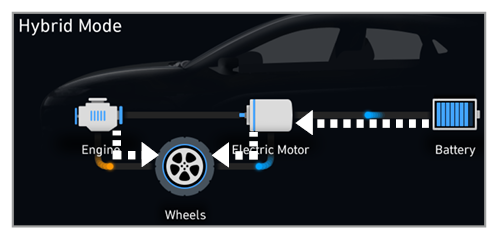

  • Driving the vehicle with the engine′s power and the motor′s power

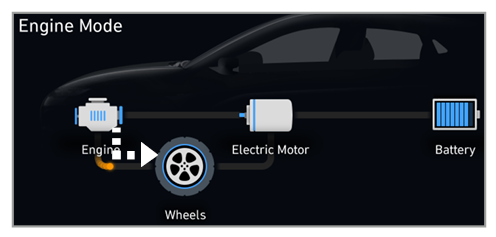

  • Driving the vehicle with the engine′s power
  • Driving the vehicle with the motor′s power
  • Charging the battery and driving the vehicle with the engine′s power
  • Charging the battery with the engine′s power and driving the vehicle with the motor′s power
Decelerating
  • Charging the battery with the deceleration energy from braking and the engine′s power
  • Charging the battery with the deceleration energy from braking
  • Reducing the engine′s power for slowing down the vehicle and charging the battery with the deceleration energy from the engine′s power

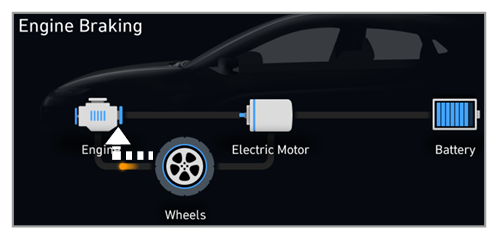

  • Reducing the engine′s power for slowing down the vehicle
Idle mode
  • Idle mode without delivering any power
  • Charging the battery with the engine′s power while the vehicle is in idle mode

Viewing solar roof information (HEV only) (if equipped)

You can view the total cumulative amount of energy generated by the solar roof panel.
  1. On the Home screen, press All Menus > Hybrid > Energy Flow > Solar Roof Info.
  1. View the solar roof information.
  1. Display the options list.
  1. User′s Manual on Web (QR Code): Access the web manual via the QR code. For safety reasons, you can access the QR code only when your vehicle is stationary.
  1. Return to the previous level.
  1. Total cumulative amount of energy generation
Note
If the total cumulative amount of energy generation reaches 8,000 kWh, it will be reset automatically because it has exceeded the displayable range.
