Useful functions

Using phone projection


Phone projection enables you to connect your Android smartphone or iPhone to your system by using a USB cable or wireless connection and use their functions via the system. You can perform and control your smartphone apps by using the larger screen and enhance your use of the system.
USB connections are available only for Android Auto.
Caution
  • Using an approved USB cable provided by your smartphone manufacturer is recommended. Using unapproved USB cables may cause a phone projection error or a system malfunction.
  • Use only apps that are compatible with phone projection. Using incompatible apps may cause problems for your system or smartphone.
  • Only compatible apps will be displayed on the phone projection screen. You can also check compatible apps by visiting the following websites:
Note
To use wireless phone projection, your smartphone must support Android Auto Wireless or wireless Apple CarPlay, and Bluetooth and Wi-Fi must be activated on the smartphone.

Connecting your Android smartphone via Android Auto

You can connect your Android smartphone and system via Android Auto and control your smartphone apps on the system′s screen.
Before starting Android Auto, activate a connection type to use for phone projection and set up the devices list for wireless connections.
Warning
For your safety, park your vehicle in a safe location before changing the phone projection settings.

Activating wireless connectivity

On the Home screen, press All Menus > Setup > Wi-Fi and press Use Wi-Fi for Phone Projection to activate it.

Activating USB connectivity

You can also start Android Auto by connecting your smartphone to the USB port in your vehicle. To use a USB cable to connect your smartphone with the system, you must activate USB connectivity.
On the Home screen, press All Menus > Setup > Device Connections > Phone Projection > Menu > Connection Settings and press Use Android Auto when Connecting to USB to activate it.

Pairing smartphones with your system for wireless phone projection

For wireless phone projection connections, first pair your smartphone with your system to add it to the phone projection devices list. You can register up to six smartphones.
Ensure that your smartphone supports Android Auto Wireless.
  1. On the Home screen, press All Menus > Setup > Device Connections > Phone Projection.
  1. If you are pairing a smartphone with your system for the first time, you can also press and hold the Voice recognition button on the steering wheel.
  1. Press Add New.
  1. On the smartphone you want to connect, activate Bluetooth and Wi-Fi, search for your vehicle′s system on the Bluetooth devices list, and then select it.
  1. Check the system′s Bluetooth name, which is displayed in the new registration pop-up window on the system screen.
Note
If the smartphone has been added to the system′s Bluetooth devices list, you must first delete the smartphone from the list to add it to the phone projection devices list.
  1. Ensure that the Bluetooth passkeys displayed on the smartphone screen and the system screen are the same and confirm the connection from the smartphone.
  1. Once registered, the smartphone is also added to the Bluetooth devices list automatically.
  2. After pairing, the smartphone will be connected to the system. Read the message on the notification pop-up window and press OK.
Note
Smartphones that support only USB connections will also appear on the phone projection devices list when connected to the system with a USB cable. When the connection ends, the smartphone will disappear from the list.

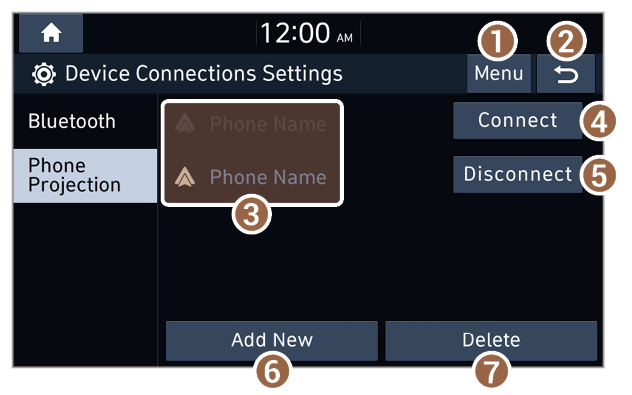

Accessing the phone projection devices list

You can view and manage registered smartphones on the phone projection devices list.
On the Home screen, press All Menus > Setup > Device Connections > Phone Projection.
  1. Display the options list.
  1. Connection Settings: Activate or deactivate USB connectivity for Android Auto or change the Apple Carplay screen′s layout.
  2. User′s Manual on Web (QR Code): Access the web manual via the QR code. For safety reasons, you can access the QR code only when your vehicle is stationary.
  1. Return to the previous level.
  1. List of smartphones paired with the system. Press a device name to connect or disconnect the smartphone.
  1. Connect the smartphone.
  1. Disconnect the smartphone.
  1. Pair a new smartphone with your system.
  1. Delete paired smartphones. If you delete a smartphone from the list, it will also be deleted from the Bluetooth devices list.

Starting Android Auto

Before using Android Auto, be sure to check the following:
Android Auto support on your smartphone
Visit the Android homepage (https://www.android.com/auto) and check the regions, device types, and models that support Android Auto.
Android Auto installed on your smartphone
Download and install the Android Auto app from Google Play. If you are in a region where Android Auto is not supported, you cannot install the app.
Start Android Auto by following the steps below:
  1. Ensure that a connection type is enabled. > See ″Activating wireless connectivity″ or ″Activating USB connectivity.″
  1. Connect your smartphone to the USB port in your vehicle via the cable supplied with the smartphone, or access the phone projection devices list and select your smartphone.
  1. If you are connecting the device for phone projection for the first time, read the message on the notification pop-up window and press Next > OK.
Caution
Do not connect and disconnect a USB connector repeatedly in a short time. Doing so may cause an error in the device or a system malfunction.
  1. If your smartphone is locked, unlock it and agree to use phone projection.
  1. On the Home screen, press All Menus > Android Auto or Phone Projection.
  1. Use your smartphone′s functions, such as calling and messaging, on your system.
  1. Press an icon on the screen to run an app or perform a function.
  2. Press the Voice recognition button on the steering wheel to start Google voice recognition.
Note
  • Even if you start phone projection while music is playing in your smartphone′s music player, music playback may not automatically switch to your system. To play music via the system, open the music player on the phone projection screen and begin playback, or press and hold the Media button and select an appropriate phone projection function from the media selection window.
  • When you are using your smartphone′s navigation via phone projection, sounds from both the system′s radio/media function and the navigation will be output through your vehicle′s speakers. When you turn the Volume knob while both sounds are being output, the navigation volume is adjusted first.
  1. To end Android Auto, remove the USB cable from your system or disconnect the smartphone from the phone projection devices list.
Note
  • When phone projection is active via USB, you cannot change the USB connectivity setting. To change the setting, remove the USB cable from your system.
  • Depending on Google′s policies, the icons on the main screen of Android Auto may change.
  • Depending on Google′s policies, apps or functions that are compatible with Android Auto may change. To check compatible apps, visit the Android homepage (https://www.android.com/auto).
  • To use phone projection in optimized environments, update your smartphone′s operating system to the latest version.
  • Depending on the connected device′s hardware, firmware, and operating system versions, the recognition time may vary.
  • Using phone projection may result in mobile communication charges.
  • Depending on the network signal status, some functions may not work correctly.
  • The wireless connection may not work correctly due to electromagnetic interference or other environmental factors.
  • Avoid controlling your smartphone while phone projection is in use.
  • While you are using Android Auto, the following functions are unavailable:
  • Searches using the control panel or the steering wheel remote control
  • Apple CarPlay
  • If your wireless connection is poor, generate a new passkey by pressing All Menus > Setup > Wi-Fi > Generate New Wi-Fi Passkey, and then try again.

Connecting your iPhone via Apple CarPlay

You can connect your iPhone and system via Apple CarPlay and control your iPhone apps on the system′s screen. Only wireless connections are available for Apple CarPlay.
Before starting Apple CarPlay, activate wireless connectivity and set up the devices list for wireless connections.
Warning
For your safety, park your vehicle in a safe location before changing the Apple CarPlay settings.

Activating wireless connectivity

On the Home screen, press All Menus > Setup > Wi-Fi and press Use Wi-Fi for Phone Projection to activate it.

Pairing iPhones with your system for wireless Apple CarPlay

For wireless Apple CarPlay connections, first pair your iPhone with your system to add it to the phone projection devices list. You can register up to six iPhones.
Ensure that your iPhone supports wireless Apple CarPlay.
  1. On the Home screen, press All Menus > Setup > Device Connections > Phone Projection.
  1. If you are pairing an iPhone with your system for the first time, you can also press and hold the Voice recognition button on the steering wheel.
  1. Press Add New.
  1. On the iPhone you want to connect, activate Bluetooth and Wi-Fi, search for your vehicle′s system on the Bluetooth devices list, and then select it.
  1. Check the system′s Bluetooth name, which is displayed in the new registration pop-up window on the system screen.
Note
If the iPhone has been added to the system′s Bluetooth devices list, you must first delete the iPhone from the list to add it to the phone projection devices list.
  1. Ensure that the Bluetooth passkeys displayed on the iPhone screen and the system screen are the same and confirm the connection from the iPhone.
  1. Once registered, the iPhone is also added to the Bluetooth devices list automatically.
  2. After pairing, the iPhone will be connected to the system. Read the message on the notification pop-up window and press OK.

Accessing the phone projection devices list

You can view and manage registered iPhones on the phone projection devices list.
On the Home screen, press All Menus > Setup > Device Connections > Phone Projection.
  1. Display the options list.
  1. Connection Settings: Activate or deactivate USB connectivity for Android Auto or change the Apple Carplay screen′s layout.
  2. User′s Manual on Web (QR Code): Access the web manual via the QR code. For safety reasons, you can access the QR code only when your vehicle is stationary.
  1. Return to the previous level.
  1. List of iPhones paired with the system. Press a device name to connect or disconnect the iPhone.
  1. Connect the iPhone.
  1. Disconnect the iPhone.
  1. Pair a new iPhone with your system.
  1. Delete paired iPhones. If you delete an iPhone from the list, it will also be deleted from the Bluetooth devices list.

Starting Apple CarPlay

Before using Apple CarPlay, be sure to check the following:
Apple CarPlay support on your iPhone
Visit the Apple homepage (https://www.apple.com/ios/carplay) and check the iPhone models that support Apple CarPlay.
Apple CarPlay and Siri activated or updated on your iPhone
On your iPhone, ensure that Apple CarPlay and Siri are activated. If your iPhone does not have the functions, update the iPhone′s operating system to the latest version.
Start Apple CarPlay by following the steps below:
  1. Ensure that wireless connectivity is enabled. > See ″Activating wireless connectivity.″
  1. Access the phone projection devices list and select your iPhone.
  1. If your iPhone is locked, unlock it and agree to use Apple CarPlay.
  1. On the Home screen, press All Menus > Apple CarPlay or Phone Projection.
  1. Use your iPhone′s functions, such as calling and messaging, on your system.
  1. Press an icon on the screen to run an app or perform a function.
  2. Press the Voice recognition button on the steering wheel to start Siri.
Note
When you are using your iPhone′s navigation via Apple CarPlay, sounds from both the system′s radio/media function and the navigation will be output through your vehicle′s speakers. When you turn the Volume knob while both sounds are being output, the navigation volume is adjusted first.
  1. To end Apple CarPlay, disconnect the iPhone from the phone projection devices list.
Note
  • To check compatible apps, visit the Apple homepage (https://www.apple.com/ios/carplay).
  • To use Apple CarPlay in optimized environments, update your iPhone′s operating system to the latest version.
  • Depending on the connected device′s hardware, firmware, and operating system versions, the recognition time may vary.
  • Using Apple CarPlay may result in mobile communication charges.
  • Depending on the network signal status, some functions may not work correctly.
  • The wireless connection may not work correctly due to electromagnetic interference or other environmental factors.
  • Avoid controlling your iPhone while Apple CarPlay is in use.
  • While you are using Apple CarPlay, the following functions are unavailable:
  • Searches using the Search knob (TUNE FILE)
  • Android Auto
  • When Apple CarPlay is active, the system′s phone functions are provided via Apple CarPlay.
