Useful functions

Using the climate control system (if equipped)

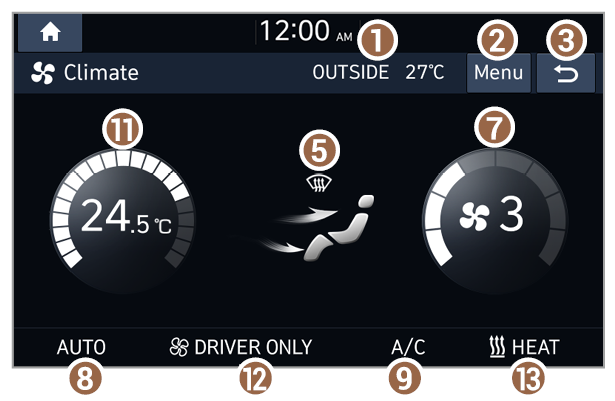

You can check the current status of the climate control system via the system screen.
Press All menus > Climate on the Home screen, or press the [CLIMATE] button in your vehicle.
  • For more information on how to use the climate control system, refer to the owner′s manual of your vehicle.
Option A
Option B
a
  • Exterior temperature
b
  • Display the options list.
  1. Display Off: Turn off the screen. Press the screen to turn it back on.
  2. Climate settings: Customise the climate control settings. > See ″Climate (if equipped).″
  3. Manual: Access the web manual via the QR code. For safety reasons, you can access the QR code only when your vehicle is stationary.
c
  • Return to the previous level.
d
  • Interior temperature (driver′s seat) (if equipped)
e
  • Air direction
f
  • Interior temperature (passenger′s seat) (if equipped)
g
  • Fan speed and auto defogging system (ADS) deactivated (if equipped)
h
  • AUTO mode activated
i
  • Air conditioner turned on
j
  • SYNC mode activated. In SYNC mode, the temperature you set will be used for the driver′s seat and the passenger′s seat (if equipped).
k
  • Interior temperature (if equipped)
l
  • DRIVER ONLY mode activated. In DRIVER ONLY mode, air conditioning or heating will be used only for the driver′s seat (if equipped).
m
  • Heater turned on (if equipped)
If you operate the climate control system while using your system, the climate control settings are displayed at the top of the screen.
Option A
Option B
Note
  • The interior temperature is displayed in units of 0.5 °C.
  • The AUTO mode will be deactivated automatically in the following situations:
  • When you adjust the fan speed or direction
  • When you turn on or off the air conditioner
  • When you activate the front windshield defroster
  • Depending on the vehicle model or specifications, displayed screens and available functions may vary.
