Turning on the radio

You can scan radio channels by using various options. Save your favorite channels to the presets list.

Perform any of the following methods:

• •  On the All Menus screen, press Radio.
• •  On the control panel, press the [RADIO] button (if equipped).

• When multiple media are connected, press the [RADIO] or [MEDIA] button once more and then press the desired media source from the Radio/Media selection window (if equipped).

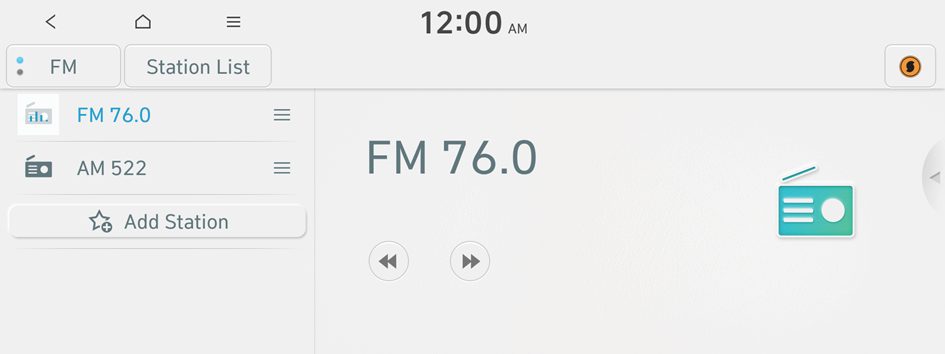

Type 1

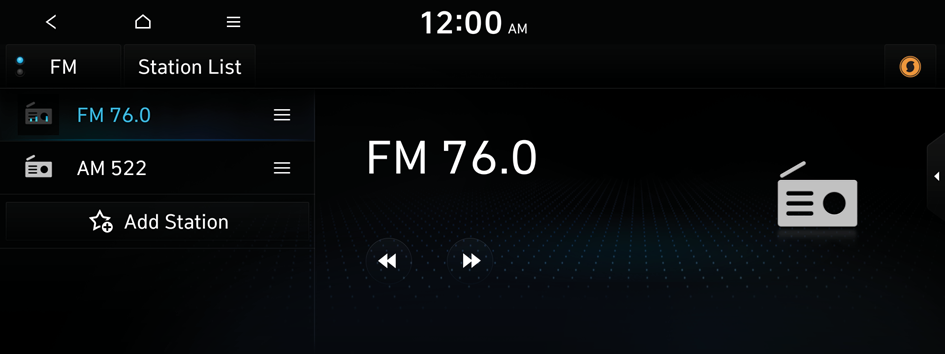

Type 2

• The screen may differ depending on the vehicle model and specifications.
• If the vehicle is type 1, it is possible to change the graphic theme to white or black. ▶ See "Graphic Themes (if equipped)."

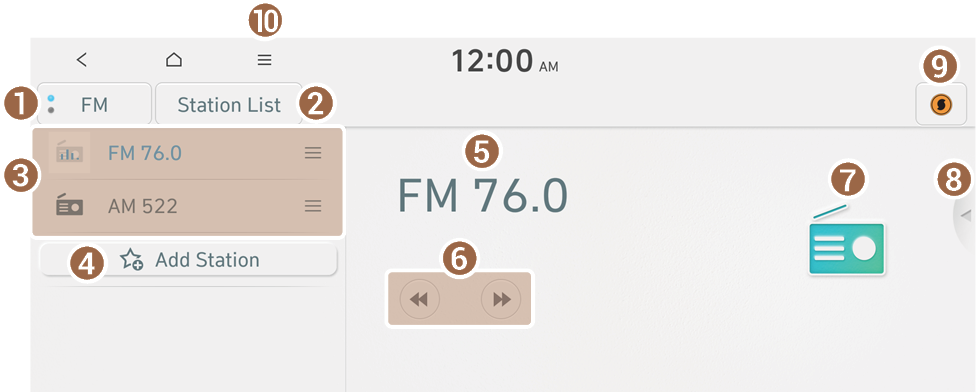

Radio screen

The radio screen provides various functions while listening to radio broadcasts.

1. Can change the radio mode.
2. Can see the list of available radio stations.
3. Presets list
   • Press and drag next the channel to rearrange the presets list.
4. You can save the current frequency to the presets list. ▶ See "Saving radio channels."
5. Radio broadcast information
6. Can change the frequency.
7. Shows information on the radio station that is airing the broadcast you are listening to, and shows the album art for the broadcast.
8. Can turn on or off the split screen mode.
9. Use SoundHound to display the detailed information of the music that is now playing on the radio.
   • To use the SoundHound service, subscribe to the Bluelink service. ▶ See "Subscribing to the service."
10. The list of menu items appears.
    • •  Display Off: Turns off the screen. To switch the screen back on, press the screen or briefly press the power button.
    • •  Station List: Can see the list of available radio stations.
    • •  Scan FM (Available only with FM): Select a broadcast of your choice after listening briefly to broadcasts from different radio stations.
    • •  Scan AM (Available only with AM): Select a broadcast of your choice after listening briefly to broadcasts from different radio stations.
    • •  Tune FM Manually (Available only with FM): Tune the radio frequency manually.
    • •  Tune AM Manually (Available only with AM): Tune the radio frequency manually.
    • •  Delete Presets: Can delete a registered channel from the presets list. ▶ See "Deleting a registered channel."
    • •  Reorder Presets: Rearrange the presets list.
    • •  SoundHound History: Can see recently searched music files through the SoundHound service.
      • To use the SoundHound service, subscribe to the Bluelink service. ▶ See "Subscribing to the service."
    • •  Radio Noise (Available only with FM): You can customize sound quality when listening to radio by adjusting background noise of the original sound.
    • •  Sound Settings: Displays the system sound settings screen.
    • •  User's Manual on Web (QR Code): Displays the QR code that provides access to the online user manual for the system.
    • •  Split Screen: Can turn on or off the split screen mode.

• The screen may differ depending on the vehicle model and specifications.
• The sound effect settings button may appear on the screen depending on the amp specifications.

Changing the radio mode

On the Radio screen, press Radio Mode button repeatedly.

The radio mode changes in the order of FM ▶ AM.

Changing the radio channel

Perform any of the following methods:

• •  On the Radio screen, press the desired channel from the presets list.
  • You can also change the channel by using the Move lever on the steering wheel.
• •  When you know an accurate frequency, use the Search lever on the control panel to change the frequency.

You can listen to the changed radio broadcast.

Using the scan function

You can listen to each broadcast briefly and select a desired one.

1. At the upper left of the Radio screen, press ▶ Scan FM/Scan AM.

   Only the channels with good reception can be listened for 5 seconds in turn.

2. When you find the desired broadcast, press the radio screen.

   You can continue listening to the scanned channel.

Saving radio channels

You can save a specific radio station's channel and easily access the channel.

While listening to a broadcast, press Add Station on the screen.

The current channel is added to the presets list.

• Alternatively, on the Radio screen, press Station List and press of the channel you want to save. The channel is saved to the preset list.
• You can register up to 40 channels.

Editing the radio channel list

Deleting a registered channel

1. At the upper left of the Radio screen, press ▶ Delete Presets.
2. Select the channel to delete and press Delete ▶ Yes.

   The channel is deleted and the preset list is emptied.

Rearranging the list of saved channels

1. At the upper left of the Radio screen, press ▶ Reorder Presets.
2. Press and drag next the channel to rearrange to the desired position.

   The presets list is rearranged.
