Using the plug-in hybrid menu (PHEV only)
You can see the driving and energy information, schedule charging, or search for charging stations.
On the Home Screen, press PHEV.

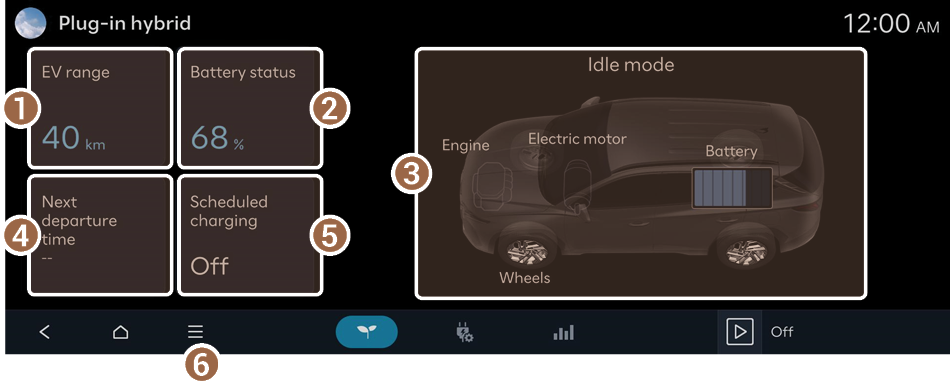

Plug-in hybrid screen
The Plug-in hybrid screen provides the following features and information:
View the drivable range under the remaining battery amount and search for nearby charging stations. ▶ See "Searching for nearby charging stations."
Check information such as drivable distance and battery status. ▶ See "Viewing the energy information screen."
View the energy flows while driving. ▶ See "Energy flows screen."
Set the next departure time. ▶ See "Setting for charging."
Schedule a charging or set the related options. ▶ See "Setting for charging."
Displays the list of menus.- • Online manual: View the online manual by scanning the QR code with your mobile phone.
Depending on vehicle model or specifications, the screen layout and available options may differ.

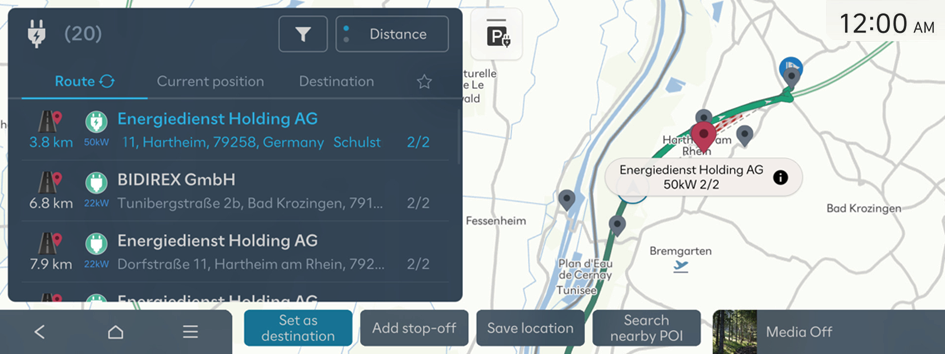

Searching for nearby charging stations
You can check the drivable range under the remaining battery amount. You can also find the routes to nearby charging stations if necessary.
- Depending on the third-party service provider, basic information or status information on some charging stations may differ.
1
Perform any of the following methods:- • On the Plug-in hybrid screen, press EV range.
- • On the Home screen, press Map ▶
▶ Nearby info ▶ Nearby POI ▶ EV charging stations.
2
Specify the range of search from the left of the screen, and then select a charging station from the right.- To view specific charging stations only, press the
and select a charging speed and operating organisation. - If you press
at the top of the screen, the locations of the charging stations and/or parking lot on the Map screen are displayed as icons.
3
Check the location of the destination and then press Set as destination.

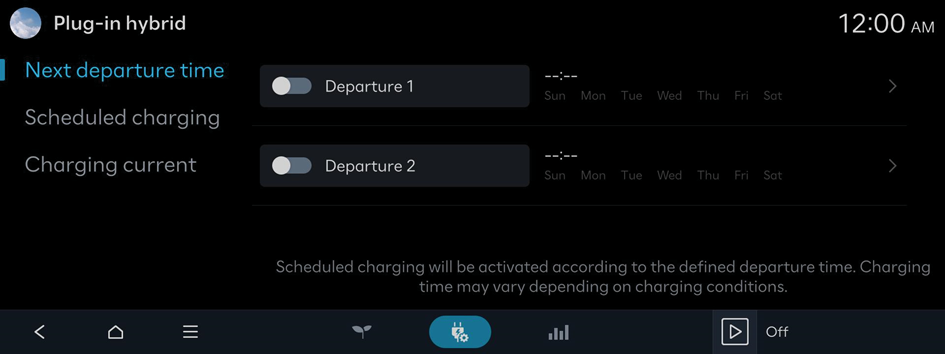

Setting for charging
You can configure various charging settings, such as automatic battery charging at the specified departure time.
Next departure time
You can schedule the charging based on the departure time.
Scheduled charging
You can set to automatically charge the battery according to the options for off-peak electricity time and off-peak charging priority.
Charging current
You can set the charging current depending on the installed charger type.
- Charging time varies based on charging conditions.
- If a problem occurs during charging, lower the charging current and try again. If you lower the charging current, it may take longer to charge the battery.

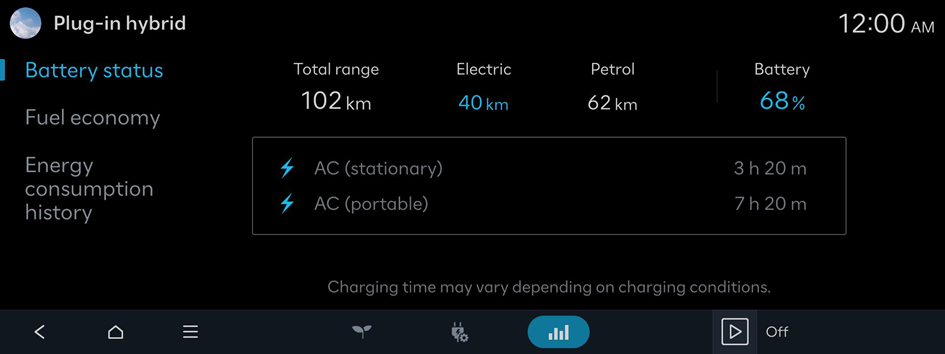

Viewing the energy information screen
You can see the drivable distance and the estimated charging time.
Battery status
You can see the drivable distance and the estimated charging time.
Fuel economy
View the average fuel economy and electric motor usage of the vehicle.
Energy consumption history
You can view a graph of fuel efficiencies on individual dates.
Energy flows screen
In case of starting the vehicle
Energy flows | Description |
|---|---|

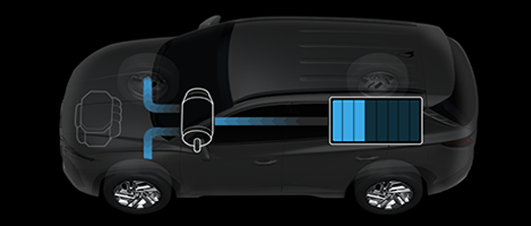

 | Starting with the motor power |
In case of driving
Energy flows | Description |
|---|---|

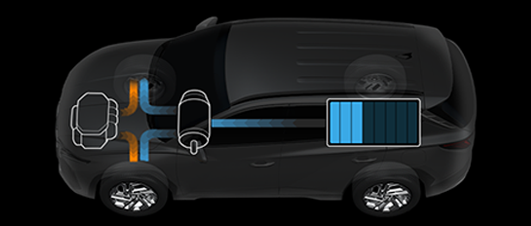

 | Driving with the engine and motor |

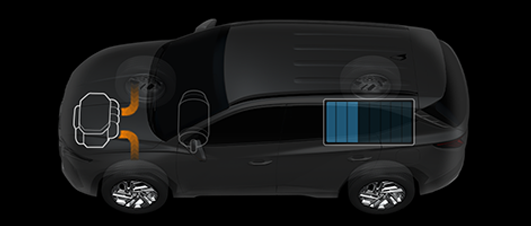

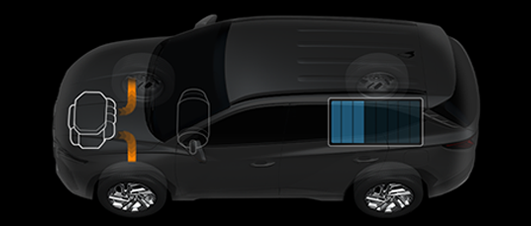

 | Driving with the engine power |

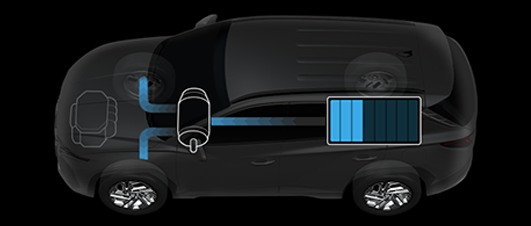

 | Driving with the motor power |

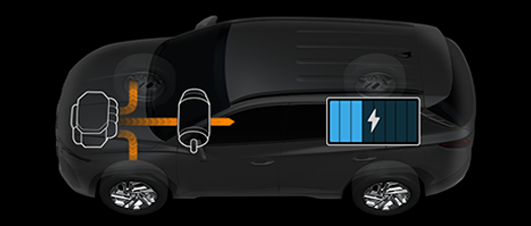

 | Driving and charging with the engine power |
 | Driving with the motor power and charging with the engine power |
In case of braking
Energy flows | Description |
|---|---|

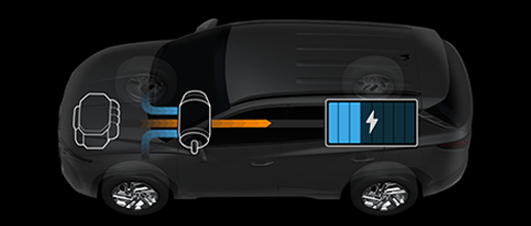

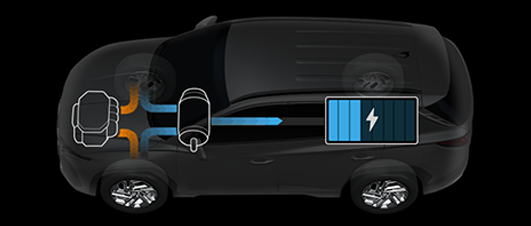

 | Charging with both the deceleration energy for braking and the power of engine |

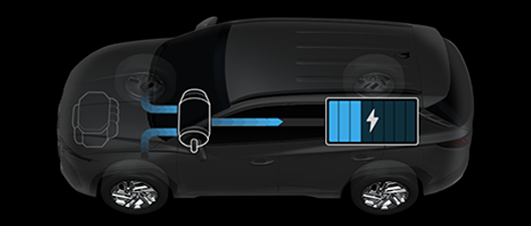

 | Charging with the deceleration energy for braking |
 | Braking the vehicle by decreasing the power of engine and charging with its deceleration energy |
 | Braking the vehicle by decreasing the power of engine |
In case of idling
Energy flows | Description |
|---|---|

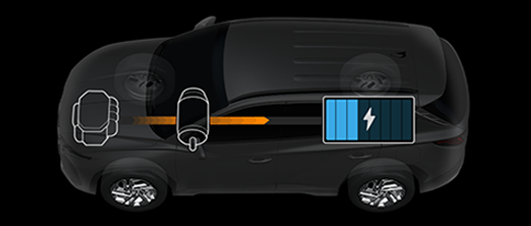

 | Charging with the engine power in standby mode |
