Navigation

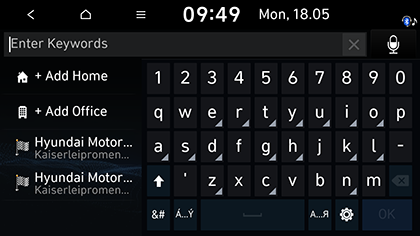

Searching for destination (If equipped)

You can find the destination by searching for an address.

  1. Press [NAV] > [Search].


  1. Press [OK] after entering the full name or initial, phone number or address.
  2. Press the desired location in the list.


  1. Press [Start guidance].

,Note

The destination is saved in the [Previous destinations] menu automatically. (Refer to “Previous destinations” part.)

POI category

You can set a POI as destination using different search methods.

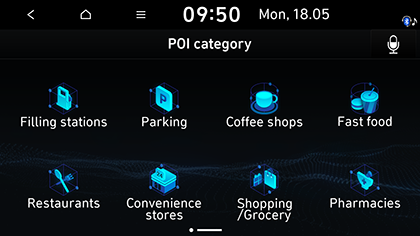

  1. Press [NAV] > [POI category].


  1. Select one of the categories.
  2. Select one of the search options.
  1. Select the preferred item from the list then press it.
  1. Press [Start guidance].

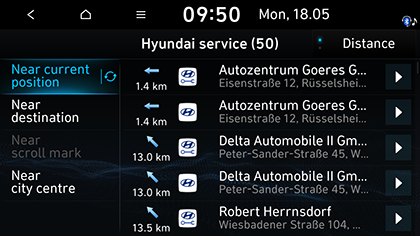

Hyundai service

You can set the facilities of Hyundai service as destination.

,Note

If the live service is connected, the Hyundai service information can be searched from server.

  1. Press [NAV] > [Hyundai service].


  1. Press the preferred item from the list.
  2. Follow step 3 of the “Search” part.

,Note

The information for the Hyundai service facilities may not correspond to a result of map information, since the information can be provided up to date.

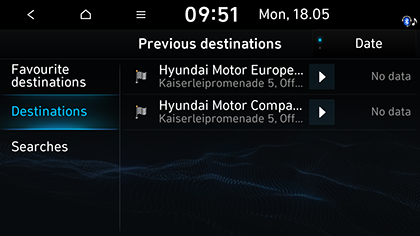

Previous destinations

You can select one of the locations you have previously searched for as a destination, tourpoint and start point.

  1. Press [NAV] > [Previous destinations].


  1. Press the preferred item from the list.
  2. Follow step 3 of the “Search” part.

Address book

You can select destination from a location saved in the [Address book] menu. To utilize this function more effectively, destinations that you often travel to should be saved in advance.

First of all, store in the [Address book] menu through the destination search function.

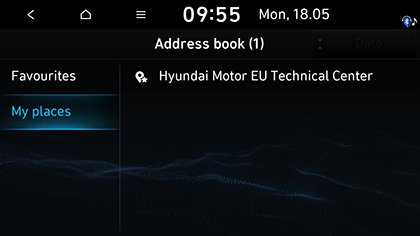

  1. Press [NAV] > [Address book] > [Favourites] or [My places].


  1. Press the preferred item from the list.
  2. Follow step 3 of the “Search” part.

Adding the position to address book

You can add the current position or the selected place to address book.

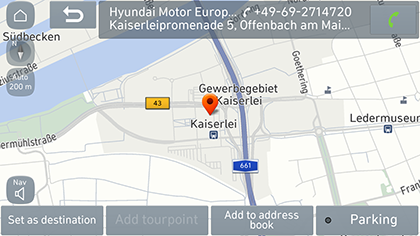

  1. To add the current position, press [icon_PDePE_quick%20menu1_191220.png] > [Save] on the map screen. To add the selected place, press [Add to address book] after searching for a destination or scrolling on map.

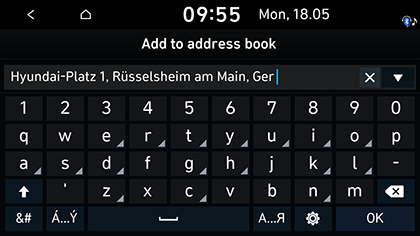

  1. Input the desired name and press [OK].

Exporting address book to USB

This function is used to export the address book to a USB memory device.

  1. Connect a USB device to the USB port.
  2. Press [SETUP] > [Navigation] > [Other settings] > [My data] > [Export address book to USB].

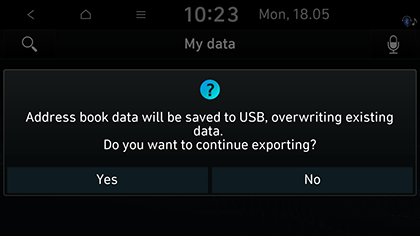

  1. Press [Yes].

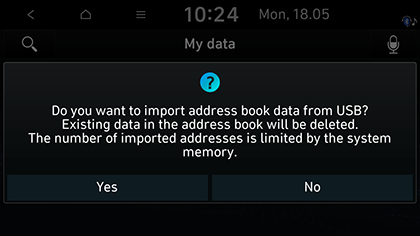

Importing address book from USB

This function is used to import the address book saved in a USB memory device.

  1. Connect a USB device to the USB port.
  2. Press [SETUP] > [Navigation] > [Other settings] > [My data] > [Import address book from USB].


  1. Press [Yes].

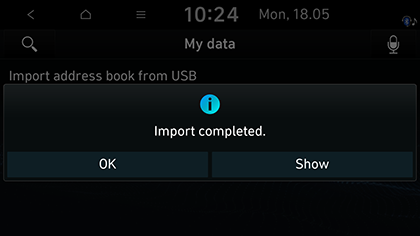

  1. Press [OK]. Press [Show] to view the imported address book.

,Note

  • The amount of data available for importing to a USB device is limited based on the number of address book items supported by the navigation system.
  • If the data stored in the USB device uses different coordinates from your navigation system, the importing location may change.
  • The import function can change the favourite list as well as the address book previously saved.
  • Using the function after successful import is recommended.
  • Import function cannot be supported according to USB format type.

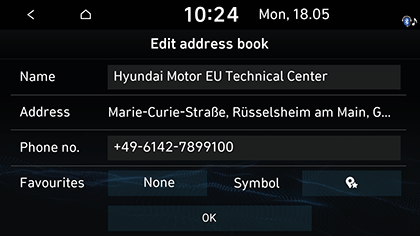

Editing address book

  1. Press [NAV] > [Address book] > [My places] > [icon_PDePE_MENU_191218.png] > [Edit].
  2. Select the item to edit and press [lx2_pencil.png].


  1. Edit the desired item.
  1. Press [OK].

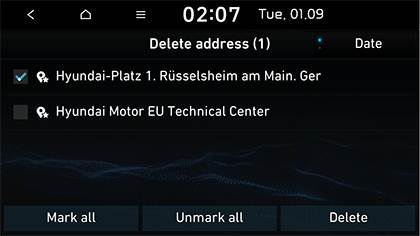

Deleting address book

  1. Press [NAV] > [Address book] > [My places] > [icon_PDePE_MENU_191218.png] > [Delete].


  1. Select the desired item, then press [Delete].

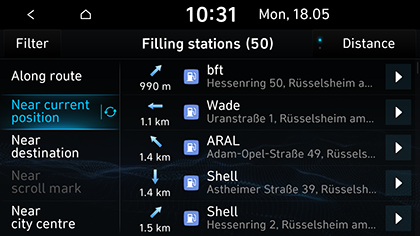

Filling stations (Non EV vehicles only)

  1. Press [NAV] > [POI category] > [Filling stations].


  1. Press the preferred item from the list.
  2. Follow step 3 of the “Search” part.

Home/Office/1~3 (Favourites)

If your home location, office location and favourite locations are already in the [Navigation] menu, they can be easily retrieved by tapping on them.

First of all, store home, office or 1~3 (Favourites) in the [Navigation] menu through the destination search function.

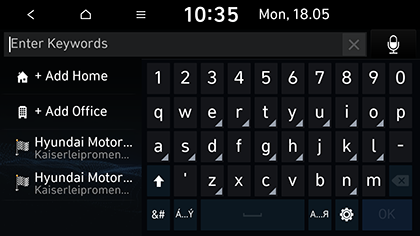

Registering Home, Office or 1~3 (Favourites)

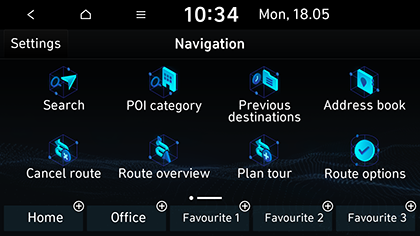

  1. Press [NAV].


  1. Press [Home], [Office] or [1~3 (Favourites)].
  2. Select the desired position through the destination search function.
  3. Press [OK] when the destination search is completed.


  1. Input the desired name and press [OK]. It is saved in the [Home], [Office] or [1~3 (Favourites)] menu automatically.

Finding your Home, Office or 1~3 (Favourites)

Press [NAV] > [Home], [Office], or [1~3 (Favourites)].
