Navigation

Navigation functions

You can use the navigation system conveniently through various functions on the Navigation Menu screen.

Perform any of the following methods:

  • •  On the All menus screen, press Navigation.
  • •  On the control panel, press the [NAV] button.
  1. Search for a location by entering various types of keywords such as place name, address, or coordinates. ▶  See "Searching by keyword."
  2. Search for a location by using the point of interest (POI) categories. ▶  See "Searching for nearby points of interest."
  3. Select one of the destinations you searched previously. ▶  See "Searching from previous destinations."
  4. Select one of the locations saved in your address book. ▶  See "Using saved favourite places."
  5. Search for Hyundai service easily. ▶  See "Searching for Hyundai service."
  6. Cancel the guidance to the destination.
  7. Check the entire route information to the destination. ▶  See "Avoiding specific zones."
  8. Edit the tourpoints on the way to the destination.
  9. Reroute by changing the route search option. ▶  See "Changing the route search option."
  10. Check accident and construction zone alerts on the map. ▶  See "Viewing traffic Information (if equipped)."
  11. Save your home, office or other frequently visited places as a favourite place to search easily.
  12. The following menus are displayed.
    • •  Display Off: Turns off the screen. To switch the screen back on, press anywhere on the screen or briefly press the power button.
    • •  Rearrange icons: Change the position of an icon on the Navigation Menu screen.
    • •  Manual: Displays the QR code that provides access to the online user's manual for the system.

Warning

Driving while distracted may cause a loss of vehicle control, potentially leading to an accident, severe personal injury, or death. The driver's primary responsibility is the safe and legal operation of a vehicle, and any handheld devices, equipment, or vehicle systems which divert the driver's attention from this responsibility should never be used during operation of the vehicle.

  1. On the All menus screen, press Navigation ▶ Search.
    • Press and hold the [NAV] button on the control panel to display Search screen.
  2. Enter the location information such as place name, address, or coordinates and then press OK.
  3. Select a location from the search result list.
    • To sort the results in a different order, press the button next to the search box.
  4. Check the location of the destination and then press Set as destination.
    • If you press Parking at the bottom right of the screen, parking lot locations are displayed on the map screen.

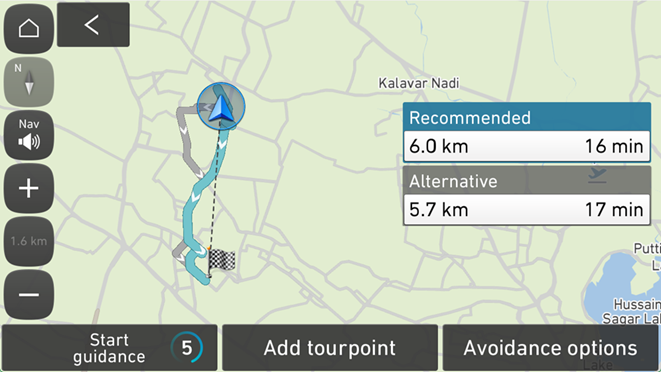

  5. Select a route and press Start guidance.
    • When searching based on a server, it provides route guidance that includes real-time traffic conditions.

Route guidance

There are two kinds of navigation route guidance possible in the system.

  • •  Server based navigation guidance
  • •  On-board navigation guidance

Server based navigation guidance

If your system is configured to telematics application, server based navigation guidance will work. When the network connection is available to the system, the route information such as traffic blockages, accidents reported, potholes information etc., can be reported from Hyundai server to the infotainment system to notify on maps.

  1. From the map screen, drag the screen and press Set as destination from the desired location.

    A request is made to use a connected routing to the destination.

  2. When the connected routing is complete, press Start guidance.
    • When connected to the server, the following screen appears.
    • In case if system fails to connect to the server, the following screen appears, then On-board navigation will be started.

On-board navigation guidance

If your system is NOT configured to telematics application, then on-board navigation will work. In this route guidance, route information will be loaded from the system‘s pre-saved information in the map data base.

  1. From the map screen, drag the screen and press Set as destination from the desired location.

    A request is made to use a searched routing to the destination.

  2. When route search is complete, press Start guidance.
    • When the route guidance starts, the following screen appears.

Caution

The information on the map may differ from actual road conditions depending on the location of the vehicle.

  • •  Digitalised roads may not be identical to the actual roads. When guidance does not match the actual route, drive the vehicle according to actual road conditions.
  • •  The system may provide guidance that differs from the actual route due to a change in road conditions. When guidance does not match the actual route, drive the vehicle according to road conditions with observing the traffic regulations. When the vehicle reaches a zone that matches the actual route, the system guides the route correctly.
  • Vehicle position may not be displayed correctly if:
    • The vehicle is driving on a Y-shaped or winding road with narrow angles.
    • The vehicle is driving closely to another road.
    • The vehicle is driving on a road where there are many tall buildings in the vicinity.
    • The vehicle is driving on a new road or a road under construction.
    • The vehicle is transported by a ferry or heavy-duty transport vehicle.
    • The vehicle is driving in a rugged mountain area or on a steep curve road.
    • The vehicle is entering a public road after making a turn through the turntable in an underground parking lot or multi-story parking lot.
    • The vehicle stops and starts repeatedly or moves slowly in front of an intersection.
    • The system reboots after the vehicle battery has been recharged or replaced.
    • You are driving in slippery conditions, such as in heavy sand or snow.
    • The tyres have been replaced recently or studless tyres or spare tyres are used.
    • When improper-sized tyres are used or the pressure of each tyre is different.
    • The replaced tyre is worn out and especially, studless tyres have been used for more than two seasons.
    • A roof carrier is installed on your vehicle.
    • On a highway continued driving causes the system to perform map matching or apply the updated GPS data.
  • Navigation service may not be provided correctly under the following conditions:
    • When the vehicle drives on a straight road continuously, the system may guide you to drive straight. It is not a malfunction.
    • Guidance may not be followed immediately after the vehicle makes a turn at an intersection or drives through an intersection.
    • The system may guide you to make a U-turn in a prohibited area.
    • The system may guide you to a traffic-blocked road (e.g. no-entry road or road under construction).
    • The system may guide you to a road away from the destination when there is no road to the destination or there are only narrow roads on the way.
    • Guidance may not be proper when the vehicle is off the route.
    • Guidance may not match the actual distance on an overpass or underpass due to the difference of the start point.
    • When you are driving at high speeds, route recalculations may take longer.

The map screen provides various functions and informations, as follows:

  1. Displays the Home screen.
  2. Change the map display mode.
    • •   (2D North up): Displays the map with the north fixed at the top.
    • •   (2D heading up): Rotates the map depending on the driving direction.
    • •   (3D heading up): Rotates the map depending on the driving direction for 3D view.
  3. Adjust the navigation sound volume.
  4. Zooms in the map.
  5. Set the map scale change mode to automatic or manual.
  6. Zooms out the map.
  7. Displays the point to change the driving direction.
  8. Displays the next point to change the driving direction.
  9. Can see the lane information.
    • •  Blue: Recommended lane
    • •  White: Available lane
    • •  Gray: Unavailable lane
  10. Displays quick menu list that can be used during guidance.
  11. Stop the navigation guidance. ▶  See "Cancelling the route guidance."
  12. Displays the remaining distance to the destination and the estimated time of arrival. For more details, press the information button.
  13. Displays or hides the detailed guidance.

Using the detailed guidance

When the vehicle needs to change the driving direction or lanes, a zoomed-in map is displayed automatically.

  • To display or hide the detailed guidance, press or .

When the detailed guidance is displayed while driving, select and perform the desired function.

  • •  To check basic information including sections for turns, press Simple.
  • •  To check the rest area on the route, press Rest area.
  • •  To check the detailed information about each zone such as intersections, interchanges, and rest areas, press Detailed.

You can adjust the volume of navigation or GPS warning sound.

On the map screen, press and then press or , or use the control bar to adjust the volume.

  • To prioritise the navigation sound while playing media, check Navigation prioritised.
  • To turn off the navigation voice, press and then press .
  • To turn off the navigation sound effects, press and then press .

To cancel the route guidance, press Cancel route.

Otherwise, press Navigation ▶ Cancel route on the All menus screen.

The destination displayed at the bottom of the screen disappears and changes to .

  • Press to search for the destination to obtain an optimum route.
  • To maintain the destination and stop the route guidance, press and hold Cancel route at the bottom of the screen. The guidance stops and the Resume guidance button appears. You can use the button to search for a previous destination and resume the route guidance.
