User's Manual

You can run the Bluelink in the system to use the service.

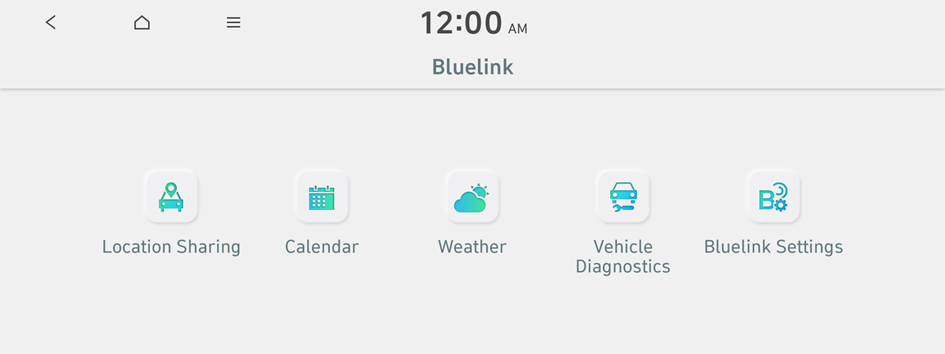

On the All Menus screen, press Bluelink.

Type 1

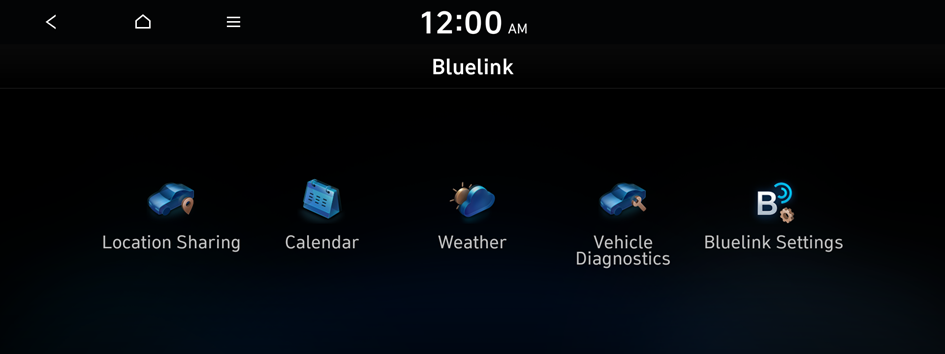

Type 2

The screen may differ depending on the vehicle model and specifications.
If the vehicle is type 1, it is possible to change the graphic theme to white or black. ▶ See "Graphic Themes (if equipped)."

Warning

Driving while distracted may cause a loss of vehicle control that may lead to an accident, severe bodily injury, or death. The driver's primary responsibility is the safe and legal operation of the vehicle, and the use of any vehicle systems, including the touch screen and steering wheel controls that take the driver's eyes, attention, and focus away from safe driving or that are not permissible by the law, should never be used while driving.

Use the Bluelink features on the system when the vehicle is stationary with the vehicle turned on.

Sharing the vehicle location

You can share the current location of the vehicle and the destination with others. You can select up to 15 recipients to share the location with by searching contacts on your mobile phone via Bluetooth or by manually entering the phone numbers.

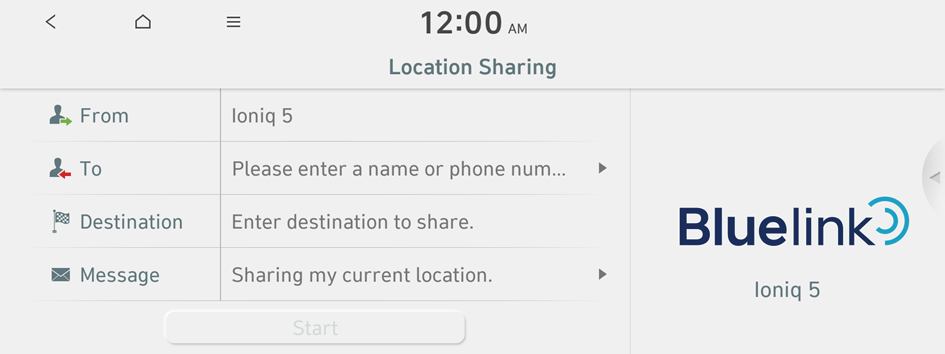

On the All Menus screen, press Bluelink ▶ Location Sharing.
Press Share Location.
Enter values for recipient and message.
Press Start.
The location sharing icon appears on the screen. A text message with the URL that gives access to the current location of the vehicle, is sent to the recipient.

To use this service, you must consent to the provision of personal information to third parties.
While the vehicle is turned off, the location cannot be shared. After the vehicle is turned on, the location sharing is enabled.
The current location, remaining time, and remaining distance may not match depending on the network connection status.

Checking schedule details

View the schedule details for today and tomorrow.

On the All Menus screen, press Bluelink ▶ Calendar.

To use the calendar, make sure you install the Bluelink App on your smartphone and sign up for the Bluelink Service. Use either Google Play Store or App Store (depending on your smartphone model) to download and install the Hyundai Bluelink App and sign up for the Bluelink Service.
To use the calendar, make sure your user profile is linked to your Bluelink account. It is not possible to use the calendar if your user profile is set to "Guest." To link your user profile to your Bluelink account, press Setup ▶ User Profile from All Menus.

Calendar screen

Select the account to provide schedule details to.
View the schedule details for today or tomorrow.
Update with the latest schedule details.
The list of menu items appears.
- • Display Off: Turns off the screen. To switch the screen back on, press the screen or briefly press the power button.
- • Sync now: Sync to the latest schedule details of the linked account.
- • Select Calendar(s): Select the calendar to display on the screen.
- • User's Manual on Web (QR Code): Displays the QR code that provides access to the online user manual for the system.
- • Split Screen: Can turn on or off the split screen mode.

Available icons and their arrangement may differ depending on the vehicle model and specifications.

Checking weather information

You can view weather information (e.g., temperature, humidity, precipitation and rainfall probability) for today, or the weather forecast.

The weather information is accessible only when the system is connected to the network.

On the All Menus screen, press Bluelink ▶ Weather.

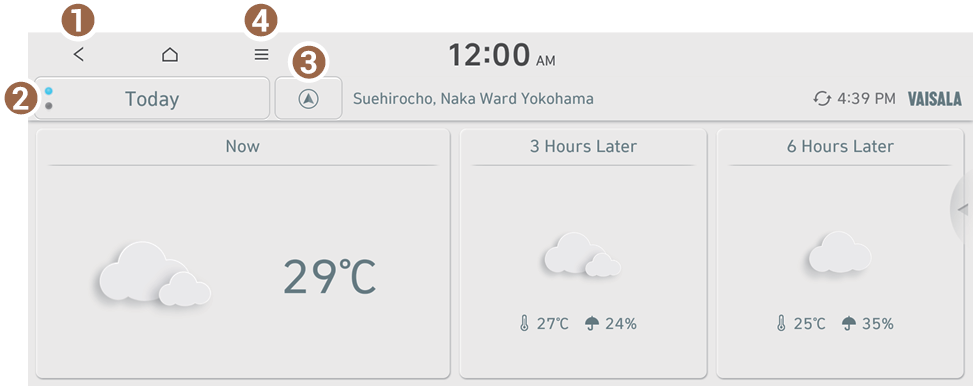

Weather information screen

Returns to the previous step.
Select today's weather and the weather forecast.
Displays the weather of the current position. If the waypoint or destination is set, you can check the weather of the waypoint or destination.
The list of menu items appears.
- • Display Off: Turns off the screen. To switch the screen back on, press the screen or briefly press the power button.
- • Update Now: Update to the latest weather information.
- • User's Manual on Web (QR Code): Displays the QR code that provides access to the online user manual for the system.
- • Split Screen: Can turn on or off the split screen mode.

Diagnosing the vehicle

You can diagnose your vehicle. The information is sent to the Hyundai Customer Center. You can receive the diagnosed result from the representative and use additional services, such as towing, route guidance to a repair shop, or a maintenance reservation.

Park your vehicle in a safe place.
- You can start a diagnosis only when the vehicle stops, because some components cannot be diagnosed while the vehicle is moving.
On the All Menus screen, press Bluelink ▶ Vehicle Diagnostics.

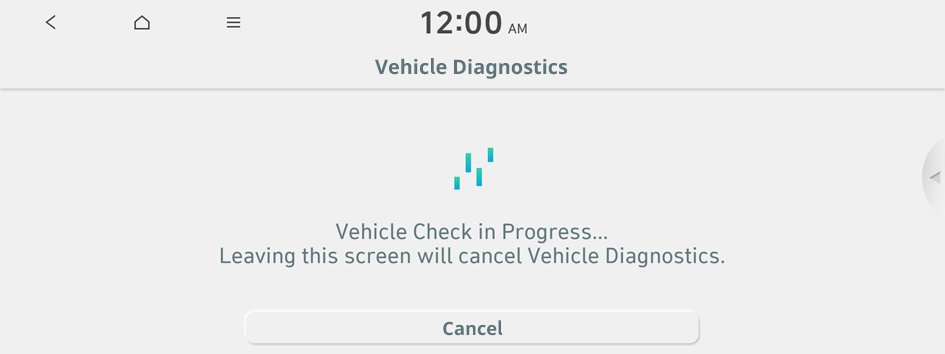

- A remote diagnosis starts. Refrain from using your system until the diagnosis is complete and the result is displayed on the screen. When you move to another screen while a diagnosis is in progress, the diagnosis is canceled.
Check the result displayed on the screen.
- A diagnosis result provided by this service is only an estimated result based on the signals from your vehicle. Visit a Hyundai Customer Center or a service coordinator for a detailed diagnosis.
- The vehicle diagnosis service is available only when the warning lamp illuminates. The warning lamps are closely related to the vehicle safety.
- If a problem occurs during use of the vehicle, press the [] button in the vehicle to request a towing service or route guidance to a service center.

Configuring the Bluelink settings

You can subscribe to the Bluelink service and activate your account or see the modem information.

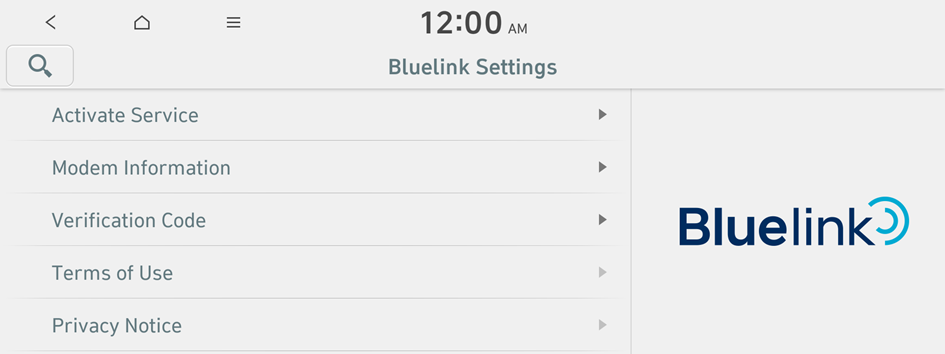

On the All Menus screen, press Bluelink ▶ Bluelink Settings.
Select the desired option(s).
- • To subscribe to the Bluelink service by using the Bluelink settings menu, press Activate Service.
- • To check the modem information for use of the Bluelink service, press Modem Information.
- • To check the Verification Code for use of the Bluelink service, press Verification Code.
- • To check the terms of use of the Bluelink service, press Terms of Use.
- • To check the privacy policy regarding use of the Bluelink service, press Privacy Notice.
