Useful functions

Using the climate control system (if equipped)

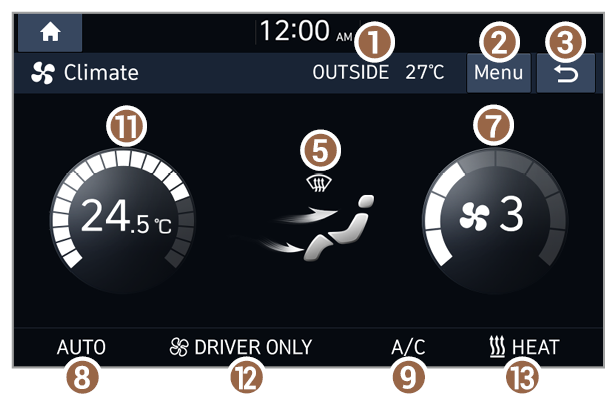

You can check the current status of the climate control system via the system screen.
Press All Menus > Climate on the Home screen, or press the [CLIMATE] button in your vehicle.
  • For more information on how to use the climate control system, refer to the owner′s manual of your vehicle.
Option A
Option B
  1. Exterior temperature
  1. Display the options list.
  1. Display Off (if equipped): Turn off the screen. Press the screen to turn it back on.
  2. Climate Settings: Customize the climate control settings. > See ″Climate (if equipped).″
  3. User′s Manual on Web (QR Code): Access the web manual via the QR code. For safety reasons, you can access the QR code only when your vehicle is stationary.
  1. Return to the previous level.
  1. Interior temperature (driver′s seat) (if equipped)
  1. Air direction
  1. Interior temperature (passenger′s seat) (if equipped)
  1. Fan speed and auto defogging system (ADS) deactivated
  1. AUTO mode activated
  1. Air conditioner turned on
  1. SYNC mode activated. In SYNC mode, the temperature you set will be used for the driver′s seat and the passenger′s seat (if equipped).
  1. Interior temperature (if equipped)
  1. DRIVER ONLY mode activated. In DRIVER ONLY mode, air conditioning or heating will be used only for the driver′s seat (if equipped).
  1. Heater turned on (if equipped)
If you operate the climate control system while using your system, the climate control settings are displayed at the top of the screen.
Option A
Option B
Note
  • The interior temperature is displayed in units of 0.5 °C.
  • The AUTO mode will be deactivated automatically in the following situations:
  • When you adjust the fan speed or direction
  • When you turn on or off the air conditioner
  • When you activate the front windshield defroster
  • Depending on the vehicle model or specifications, displayed screens and available functions may vary.
