Using the electric vehicle menu (EV only)

You can use various EV-specific functions, such as driving and energy information views and vehicle charge scheduling.

On the Home screen, press EV.

Electric Vehicle screen

The Electric Vehicle screen provides the following features and information:

1. View the current battery level.
   • If you press the vehicle image, the Charging limit screen appears.
2. Can search for nearby charging stations.
   • The details of charging stations displayed on the map screen may not match the actual information.
3. Move to the EV Range screen.
4. View the distance to empty for the current climate control settings.
   • The details of drivable range displayed on the map screen may not match the actual information.
5. Displays the list of menus.
   • •  Charging Station List: You can search for nearby charging stations.
   • •  Edit EV Home Widgets: Edit items that can be controlled from the Electric Vehicle screen.
     • To reset the control items on the Electric Vehicle screen and their positions, press Reset.
   • •  Online Manual: View the online manual by scanning the QR code with your mobile phone.

Searching for nearby charging stations

If the distance to the set destination exceeds the drivable range, you can use the function that guides you along a route with charging stations within the drivable range.

• Depending on the third-party service provider, basic information or status information on some charging stations may differ.

1. Perform any of the following methods:
   • •  On the Electric Vehicle screen, press the Charging Station icon.
   • •  On the Home screen, press Map ▶ ▶ Nearby Info. ▶ Nearby POIs ▶ EV Charging Stations.
2. Specify the range of search from the left of the screen, and then select a charging station from the right.
   • To view specific charging stations only, press the and select a charging speed and operating organization.

3. Check the location of the destination and then press Route.

Viewing the drivable range

Can check the drivable range under the remaining battery amount.

• The details of drivable range displayed on the map screen may not match the actual information.

1. Perform any of the following methods:
   • •  On the Electric Vehicle screen, press .
   • •  On the Map screen, press ▶ EV Range.
2. From the EV Range screen, check how far you can drive with the current battery level.


Viewing the energy information screen

Check the vehicle's electricity usage and EV economy history.

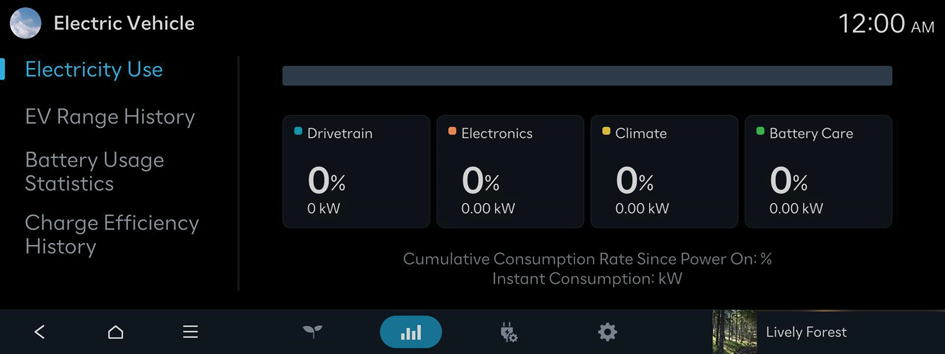

Electricity Use

You can view the power consumed by the drivetrain, climate control, electrical systems and battery care function.

EV Range History (if equipped)

Displays the distance-to-empty (DTE) value and power consumption information each time the odometer value increases by 2 km.

Battery Usage Statistics (if equipped)

Maintain battery performance by analyzing the vehicle charging records and the driver's driving habits.

• This menu item is displayed only when the mileage is above 3000 km.

Charge Efficiency History

You can view a graph of fuel efficiencies on individual dates.

Setting for charging

You can configure various functions such as automatic battery charging or climate control according to the specified departure time.

Next Departure Time

Sets and maintains the vehicle cabin temperature for the next departure time.

AC Charging Settings

You can schedule charging and set the charge current, depending on the installed charger type.

• Charging time varies based on charging conditions.
• If a problem occurs during charging, lower the charging current and try again. If you lower the charging current, it may take longer to charge the battery.

Charging limit

Sets the maximum % charge level for the vehicle's high voltage battery.

Electricity Use Settings (V2L)

Sets the minimum battery charge % level at which V2L will stop.

• V2L is an abbreviation of Vehicle To Load.

Configuring the Electric Vehicle settings

You can set convenience features available for electric vehicles.

• Available settings may differ depending on the vehicle model and specifications.

Battery Conditioning

Adjusts battery temperature to maintain optimal fast charging performance.

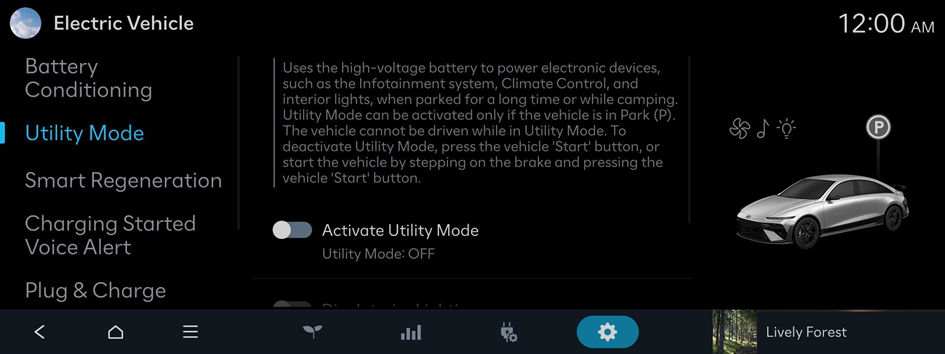

Utility Mode

Uses the high-voltage battery to power electronic devices, such as the Infotainment system, Climate Control, and interior lights, when parked for a long time or while camping.

• To deactivate Utility Mode, press the vehicle 'Start' button.

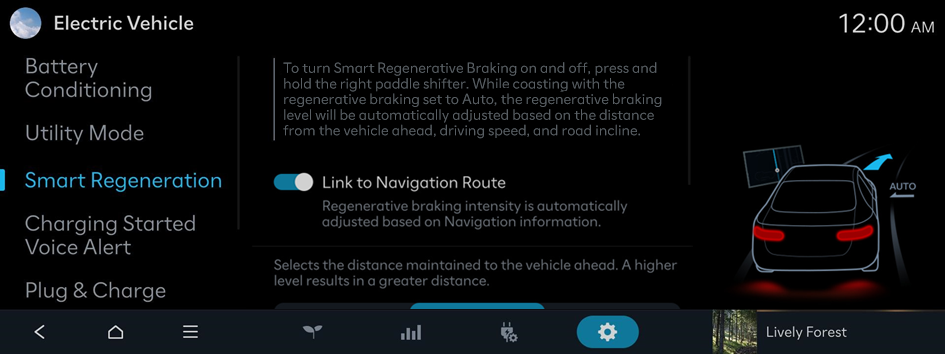

Smart Regeneration

Automatically adjusts the braking intensity when Regenerative Braking is set to 'Auto'. These adjustments are made while the vehicle is coasting, and are based on the detected driving speed, following distance, and road slope.

Charging Started Voice Alert

Provides voice prompts about charging status when the vehicle starts charging.

• To turn off the Charging Started Voice Alert, press Off.

Plug & Charge (if equipped)

Vehicle authentication, charging, and payment are automatically processed when connected to a charging cable. The charging service can be used after registering as a member. Only available in Plug & Charge service areas.

i-PEDAL (if equipped)

You can accelerate, decelerate, and stop using only the accelerator pedal. Use the brake pedal when necessary.

EV Route Planner (if equipped)

Sets the minimum State of Charge when taking the route.
