Configuring the navigation settings

You can configure the navigation operations, screen display, voice guidance, and other settings.

• Available settings may differ depending on the vehicle model and specifications.
• For details on how to use navigation functions, refer to the following: ▶ see "Map."

1. On the Home screen, press Setup ▶ Navigation.

   The navigation settings screen appears.

2. Configure the settings as required.

• Press on the screen or press the [SEARCH] button on the control panel, enter a search term, and then select the item to run.

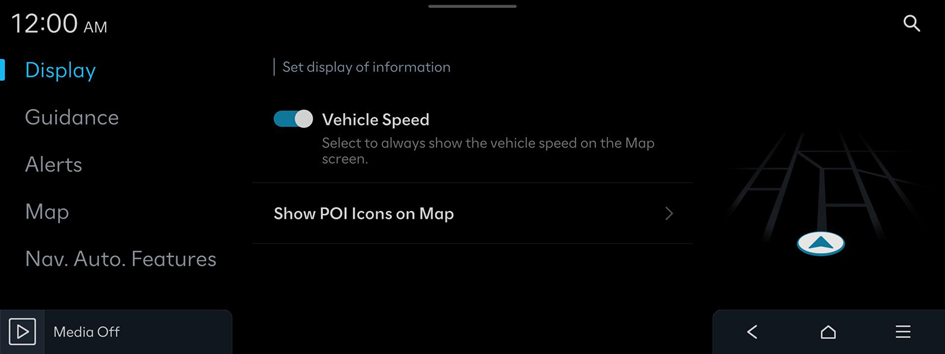

Display

You can specify the information to display on the navigation map screen.

Vehicle Speed

Displays the vehicle speed on the map.

Display Traffic Info (if equipped)

Displays nearby traffic information in 2D and 3D Map Views.

Show Traffic Colors (if equipped)

Shows the traffic color on route.

Show POI Icons on Map

You can set the icon type to display nearby points of interest on the map.

• Select Auto Display when Charging is Needed is set for display of EV Charging Stations to show nearby charging stations on the map only when the vehicle needs charging (EV only).

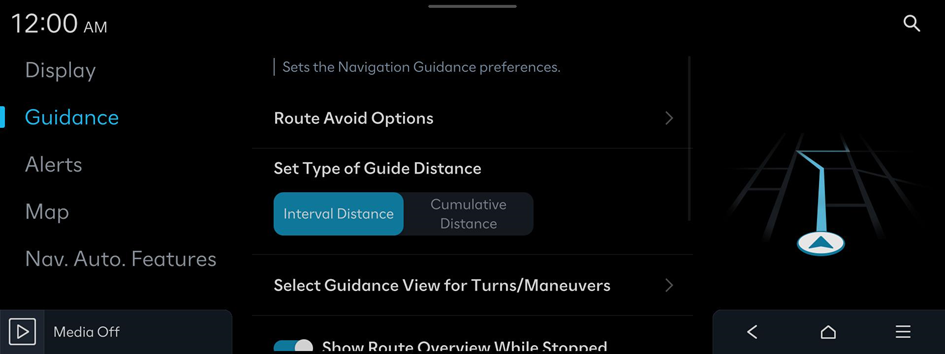

Guidance

You can configure the navigation guidance settings.

Route Avoid Options

Change the display name for a route option or set specific route options for each route.

Set Type of Guide Distance

Set how to display the distance to the destination during route guidance.

• •  Interval Distance: Displays the distance to the next waypoint and the distance between the last waypoint and the destination.
• •  Cumulative Distance: Displays the cumulative distance from the current point to the destination.

Select Guidance View for Turns/Maneuvers

You can specify the information to display on the navigation map screen while driving.

• •  Detailed Guidance View: Displays detailed information on the map screen, such as moving directions and lane change.
• •  Augmented reality view of guidance location: Switches the vehicle to AR navigation mode when entering an intersection (if equipped).

Show Route Overview While Stopped

Automatically displays the route overview from the starting point to the destination when the vehicle is stationary.

Use ETC Only toll booth

Include navigation route with Smart IC (ETC-only interchange).

End Navigation Voice Guidance Near Destination

If the set destination is a saved place, voice guidance is turned off when the vehicle gets closer to the destination.

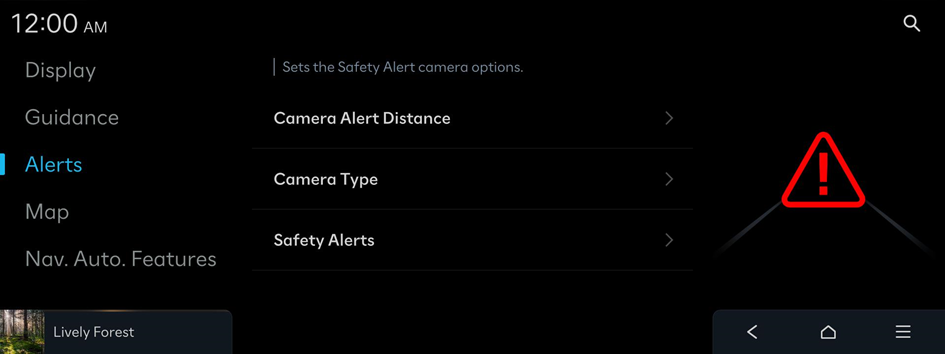

Alerts

Configure settings so that the driver assist function is activated when needed for safety.

Camera Alert Distance

Set the time when to get alerts and voice descriptions about traffic enforcement cameras.

• •  Camera Alert Distance Depending on the Speed Limit: Automatically sets the time when to get alerts about traffic enforcement cameras depending on the vehicle speed. When the Camera Alert Distance Depending on the Speed Limit function is off, the time when to get guidance on traffic enforcement cameras on Camera Alert Distance (Local Roads) and Camera Alert Distance (Expressway) can be selected.

Camera Type

Specify the types of traffic enforcement cameras to receive alerts on their location.

Safety Alerts

Set the type of zone to get safety alerts for and specify the time (daytime/night-time) when to get safety alerts.

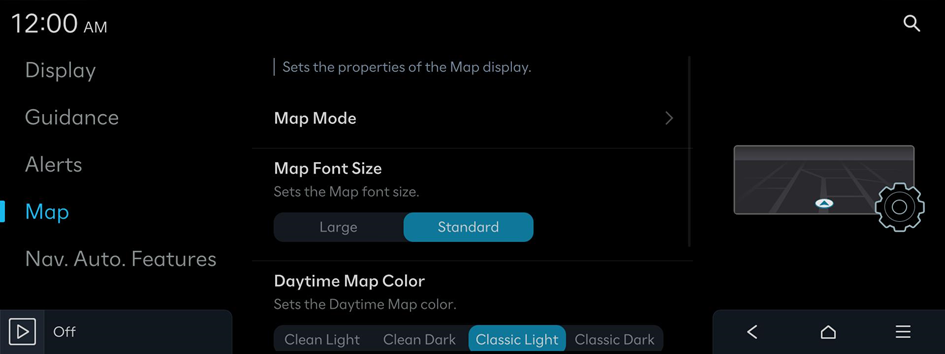

Map

Set the navigation map display mode.

Map Mode

Specify the items to display on the map.

• •  Map View: Set the navigation map display mode.
  • North Up 2D: Displays the map with the north fixed at the top.
  • Heading Up 2D: Rotates the map depending on the travel direction.
  • Heading Up 3D: Rotates the map depending on the travel direction for 3D view.
  • Augment. Reality: Displays the travel direction on the actual road image via the front-view camera (if equipped).
• •  3D Buildings: Displays major buildings on the map in three dimensions.
• •  Auto-scale: Automatically changes the scale of the map.

Map Font Size

Set the size of the screen font on the navigation map.

Daytime Map Color

Set the navigation map theme color.

Set Map Auto-scale

Set the scale, which is automatically adjusted based on the vehicle speed.

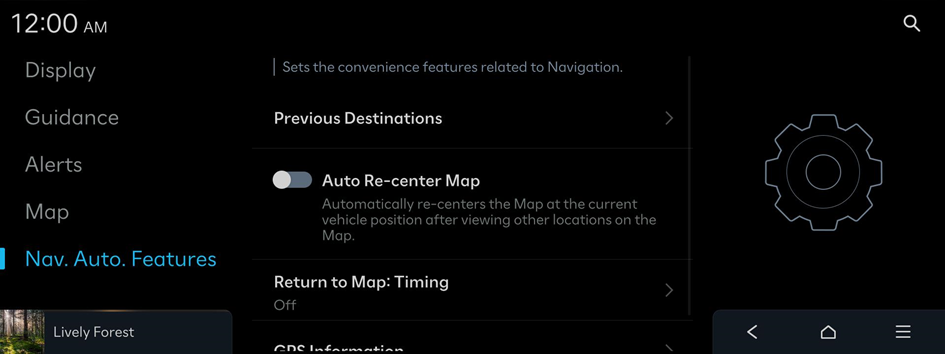

Nav. Auto. Features

Set the navigation options.

Previous Destinations

Set the system to automatically save the previous destination and display the previous destinations when the navigation system starts.

• •  Save Previous Destinations: Automatically saves the previous destination.
• •  Display Previous Destinations when entering the Map screen: Displays a list of recent destinations in a pop-up window when the navigation system starts.

Auto Re-center Map

Automatically displays the current position when 15 seconds has elapsed after dragging and moving to another position on the map.

Return to Map: Timing

Automatically displays the map screen when a specified period of time has elapsed after switching to the Media mode screen while using the navigation.

• This function works while driving when a destination has been set.
• This function is not available on the phone projection screen.

GPS Information

You can see the GPS satellite status and coordinates of the current position.
