Using the climate control function (if equipped)

You can view or configure the vehicle climate settings from the System screen.

• Depending on vehicle model or specifications, the screen layout and available options may differ.
• For more information about how to use the heater and air conditioner, refer to Owner's Manual of the vehicle.
• When you manipulate the climate control system while using the product, the climate settings appear on the upper part of the screen (if equipped).

1. Perform any of the following methods:
   • •  Press the [CLIMATE] button on the climate control system.
   • •  On the All Menus screen, press Climate.
2. Select and then change the settings.

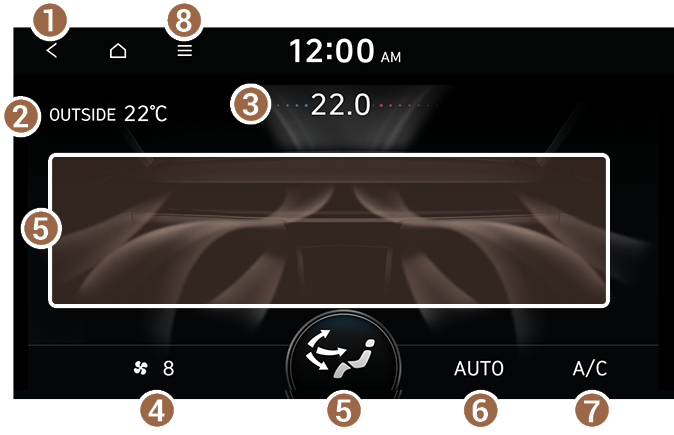

   1. Returns to the previous step.
   2. Shows the outside temperature of the vehicle.
   3. Shows the current set temperature.
   4. Shows the current fan speed.
   5. Shows the current airflow direction.
   6. Shows whether AUTO mode is on or off.
   7. Shows whether the air conditioner function is on or off.
   8. The list of menu items appears.
      • •  Display Off: Turns off the screen. To switch the screen back on, press the screen or briefly press the power button.
      • •  User's Manual on Web (QR Code): Displays the QR code that provides access to the online user manual for the system.

• The temperature of the climate system can be adjusted by 0.5 ℃ increments. When the temperature is set to the lower limit or upper limit, "LOW" or "HIGH" is displayed depending on the vehicle model and specifications.
