Using the climate control function

You can view or configure the vehicle climate settings from the System screen.

• Depending on vehicle model or specifications, the screen layout and available options may differ.
• For more information about how to use the heater and air conditioner, refer to Owner's Manual of the vehicle.
• When you manipulate the climate control system while using the product, the climate settings appear on the upper part of the screen (if equipped).

1. Perform any of the following methods:
   • •  Press the [CLIMATE] button on the climate control system.
   • •  On the All menus screen, press Climate.
2. Select and then change the settings.

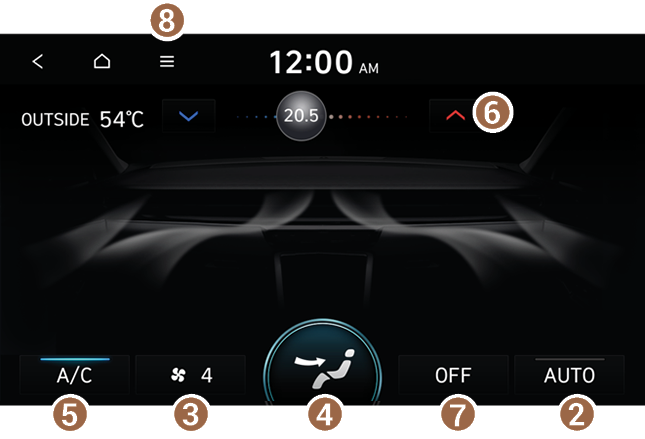

   Option A

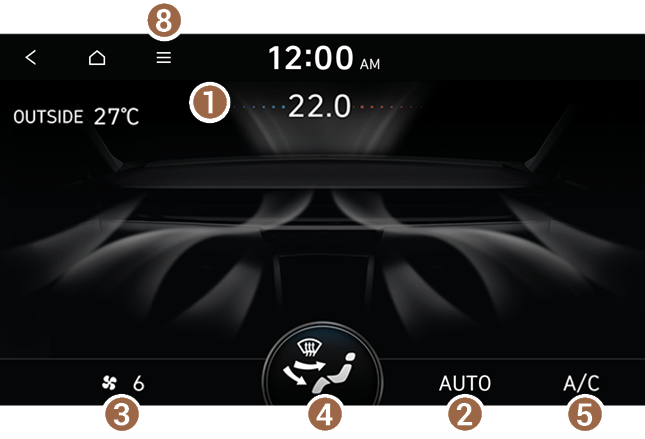

   Option B

   1. Shows the current set temperature.
      • When the driver seat-only climate control mode is turned off, the set temperature indicator for the passenger seat turns off (if equipped).
   2. Shows and can change AUTO mode on or off.
   3. Shows and can adjust the fan speed.
   4. Shows and can change the airflow direction.
   5. Shows and can turn on or off the air conditioner function.
   6. Shows and can adjust the temperature values.
   7. Turn on or off the climate control function.
   8. The list of menu items appears.
      • •  Display Off: Turns off the screen. To switch the screen back on, press anywhere on the screen or briefly press the power button.
      • •  Climate settings: Configure specific climate control function settings (if equipped).
      • •  Manual: Displays the QR code that provides access to the online user manual for the system.

• The screen may differ depending on the vehicle model and specifications.
• The temperature of the climate system can be adjusted by 0.5 ℃ increments. When the temperature is set to the lower limit or upper limit, "LOW" or "HIGH" is displayed depending on the vehicle model and specifications.
